Estimating FS and ALF for Various CTs

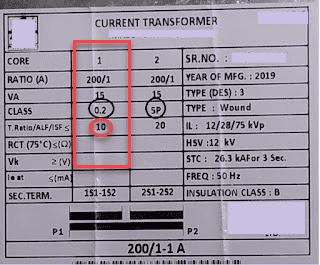

In measurement CTs (Current Transformers), a parameter called Fs (Security Factor) exists, which is used to describe the CT and its accuracy class. According to the IEC60044-1 standard, Fs is defined such that at a current of Fs times the rated current, the composite error in the secondary is 10%. For example, for a CT with a class of 0.5Fs10, at 10 times the rated current, the composite error is 10%. On the CT nameplate provided in this example, Core number one is a measurement type and its class is 0.2Fs10. This means that at 10 times the rated current, the composite error at the output is 10%. The 0.2 figure before Fs represents the accuracy class of the CT at the rated current. This means that at 100% and 120% of the rated current on the primary side, the ratio error at the secondary terminal is less than 0.2%.

For protective CTs, a similar concept exists known as ALF (Accuracy Limit Factor). To explain this parameter, consider the previous example. Core number 2 is a protective core with a class of 5P20. In this example, ALF = 20, and according to the definition provided by IEC60044-1, at 20 times the rated current, the composite error is 5%. For a more detailed explanation, consider a protective CT with a class of 10P5. In this case, ALF = 5, and according to the definition, at 5 times the rated current, the composite error is 10%.

One key point about these two parameters is that for measurement CTs, the actual Fs is less than the value indicated on the nameplate, whereas for protective CTs, the actual ALF is greater than the value shown on the nameplate

Ratio Error and Composite Error

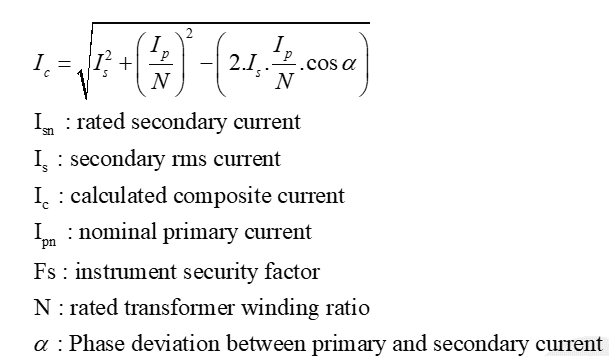

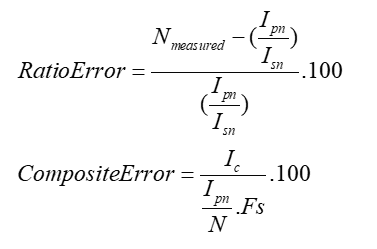

According to the definition provided in the IEC60044-1 standard, the ratio error is represented as follows:

ALF or Fs is where the composite error is 5% or 10%.

According to the definition, ALF or FS is where

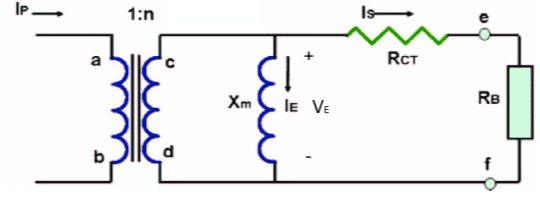

To calculate the composite error using the indirect method (disregarding the ratio error), it can be said that the parallel branch current is the cause of the composite error between the primary and secondary sides. Therefore, to ensure that the composite error at Fs times the rated current is 10%, the parallel branch current must be 10% of the output current.

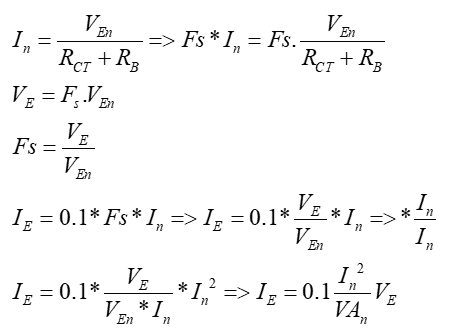

In such conditions, the parallel branch voltage is also equal to Fs times the parallel branch voltage under conditions where the rated current passes through the CT terminal at the nominal load:

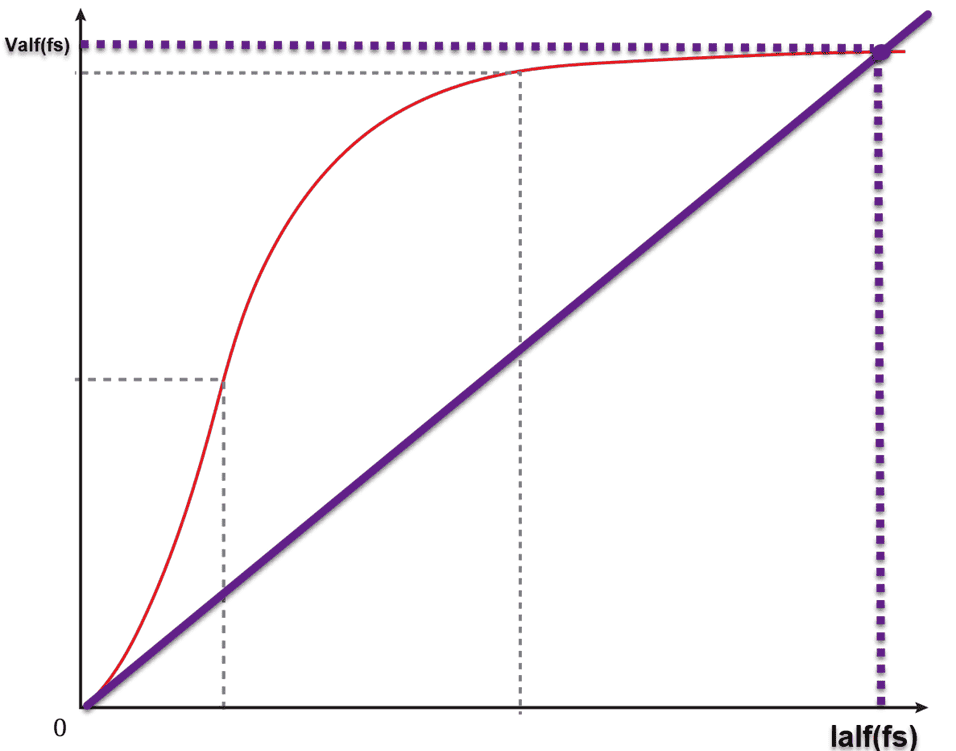

According to the provided relationship, for a specified ALF (Fs), there is a line with a constant slope. The intersection of this line with the saturation curve indicates the point where the CT’s composite error is 10%.

By dividing the obtained voltage by the nominal impedance, the output current is obtained, and its ratio to the rated current will correspond to ALF (Fs)
