Connect with Relay

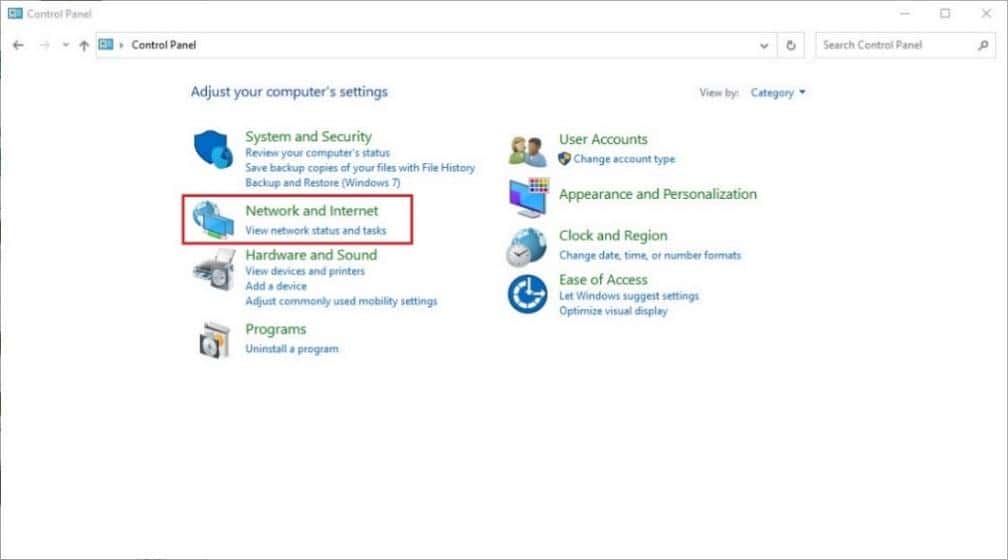

To connect the relay with the software, the network cable must first be connected to the LAN port behind the relay and the other side to the laptop. In order to connect, an IP range must be defined for the system interface according to the laptop operating system. These settings are checked for Windows 10: in the Start menu, Control Panel is searched and opened, then in the opened window click on the Network and Internet icon.

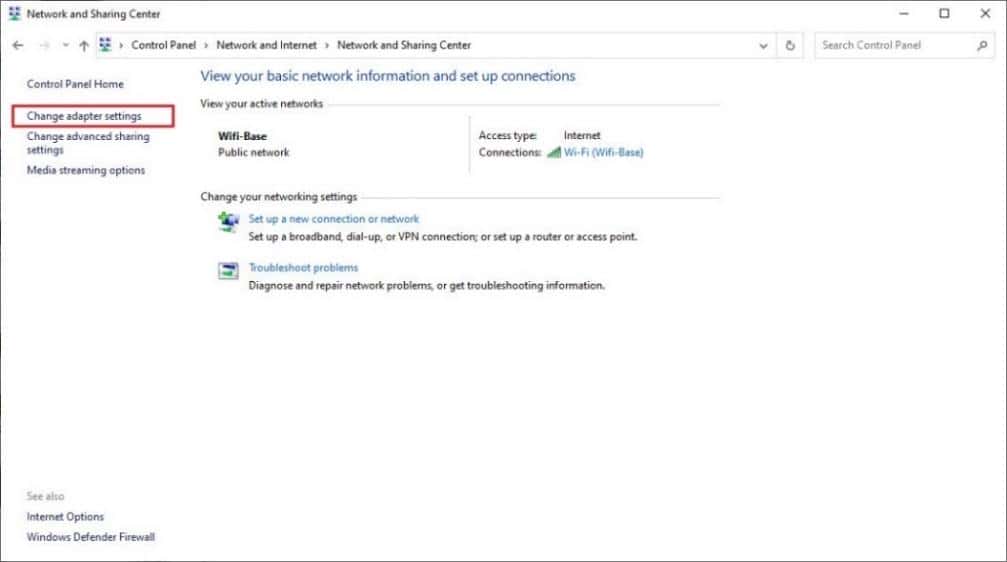

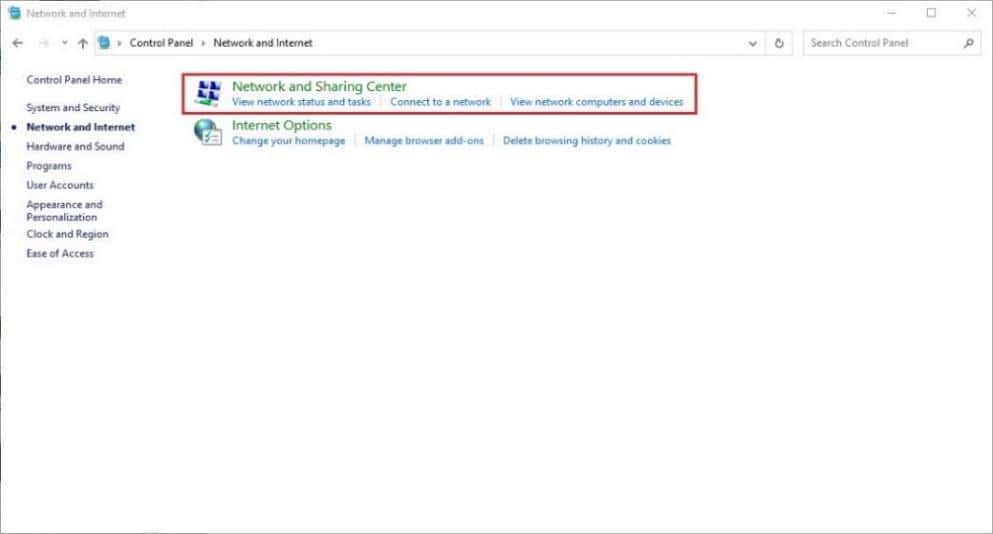

Then click on network and Sharing Center option.
Then on the left side of the window, click on
change adapter settings option.

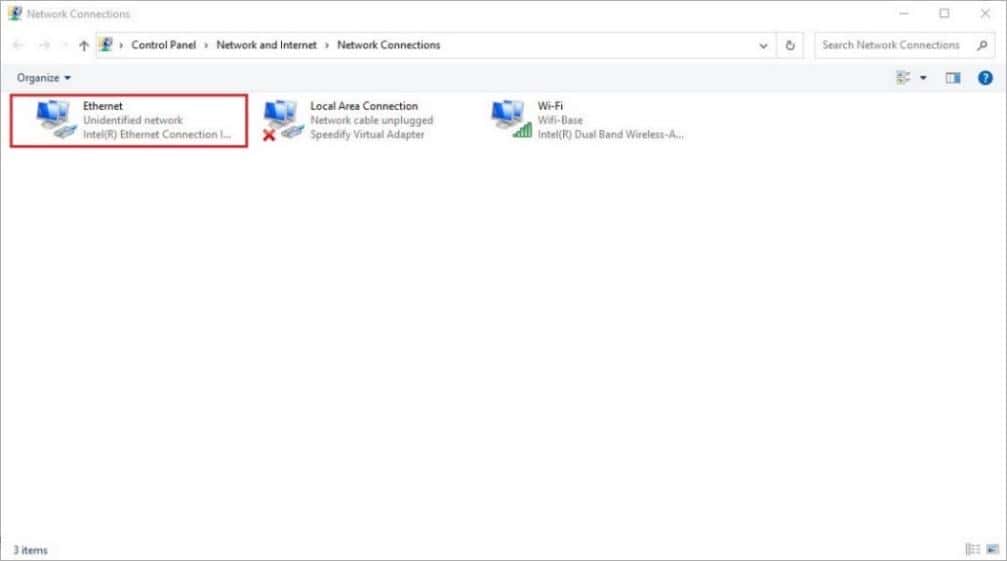

In the opened window, double click on the Ethernet
icon.
In this section, there might be a large number of
Ethernet or Local Area Connection interfaces, to ensure that the correct
interface is selected, the network cable can be removed from the system once,
in which case a red cross on the icon is placed and after reconnecting the
cable, the red cross is removed from the desired icon. In the opened window,

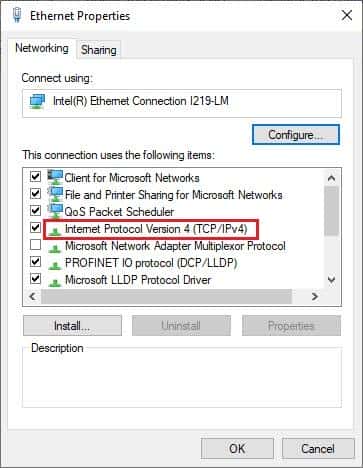

double click on Internet Protocol Version 4 (TCP/IPv4) option.

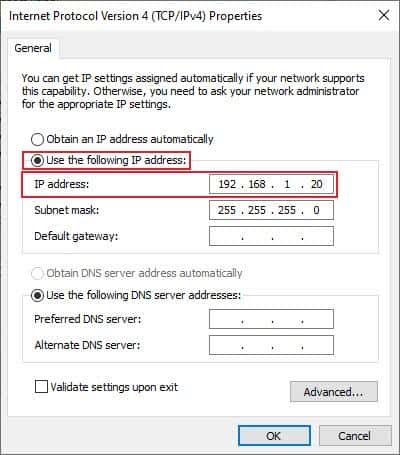

In the opened window, select radio button use the
following IP address and enter the range of 192.168.1.20 in the IP address
section.
By adjusting this IP range, the 255.255.255.0 range
is automatically placed in the Subnet mask section. Finally, click on OK and
also in the windows that have been opened before it, click on ok option. After connecting the network cable and doing the

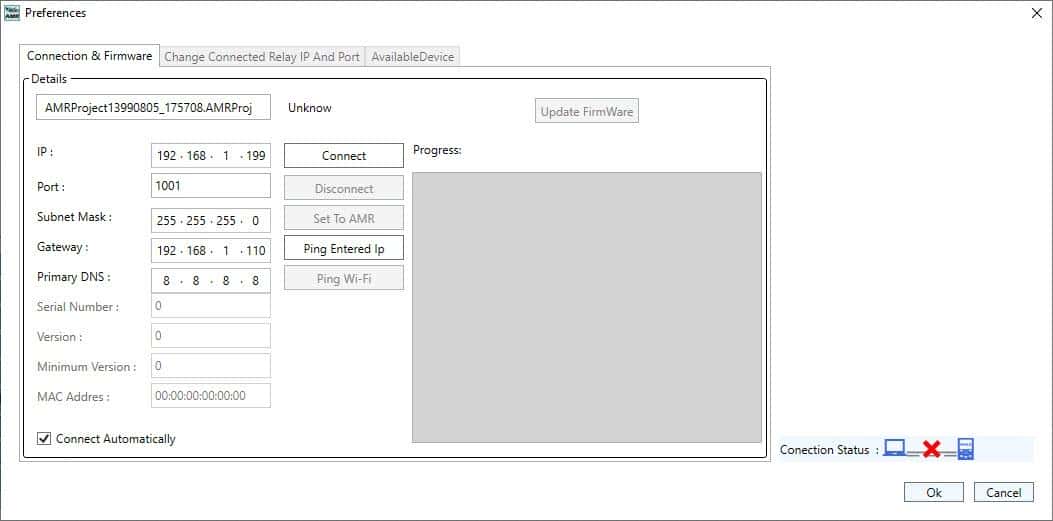

required settings, the Preferences window should be opened by double-clicking
on the Connection Status icon, then the relay IP is entered in the IP section.
This IP is 192.168.1.199 by default, which can be changed.
To check the software and relay connection in the
Local network, click on the Ping entered IP option. If you are connecting the

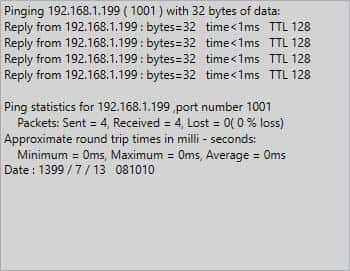

replay from 192.168.1.199: bytes=32 time<1ms TTL 128 message is repeated and

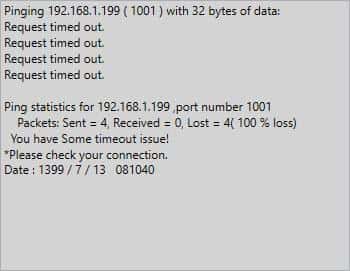

in case of no connection, request timed out message is repeated.
After checking the connection, by clicking on connect
option, the software connects to the relay and two green ticks are placed on
the Connection Status icon. If the Connect Automatically option is ticked, the
Connect command is automatically sent to the relay every 3 seconds if the
connection is disconnected. To disconnect the software and relay, you can click
on disconnect option, in which case the tick of the Connect Automatically
option is also removed. To change the relay IP, while the software and
relay connection is established, in the Preference window, the existing IP is
deleted and the desired IP is entered, then by clicking on set to AMR option,
this IP is set on the device. It should be noted that the entered IP range
should be legible with the IP range of the laptop and the Local network in
which the relay wants to be placed. [jg1]RE_Connect_with_relayPreferences window
Checking connection
Changing relay IP
