🔍 DC Resistance Measurement — looking beyond the final value

 DC resistance measurement is a key diagnostic test for transformer windings, used to evaluate:
▪️Winding continuity
▪️Contact integrity
▪️Connection quality
▪️Early signs of deformation or overheating

⚡ What happens during the test?

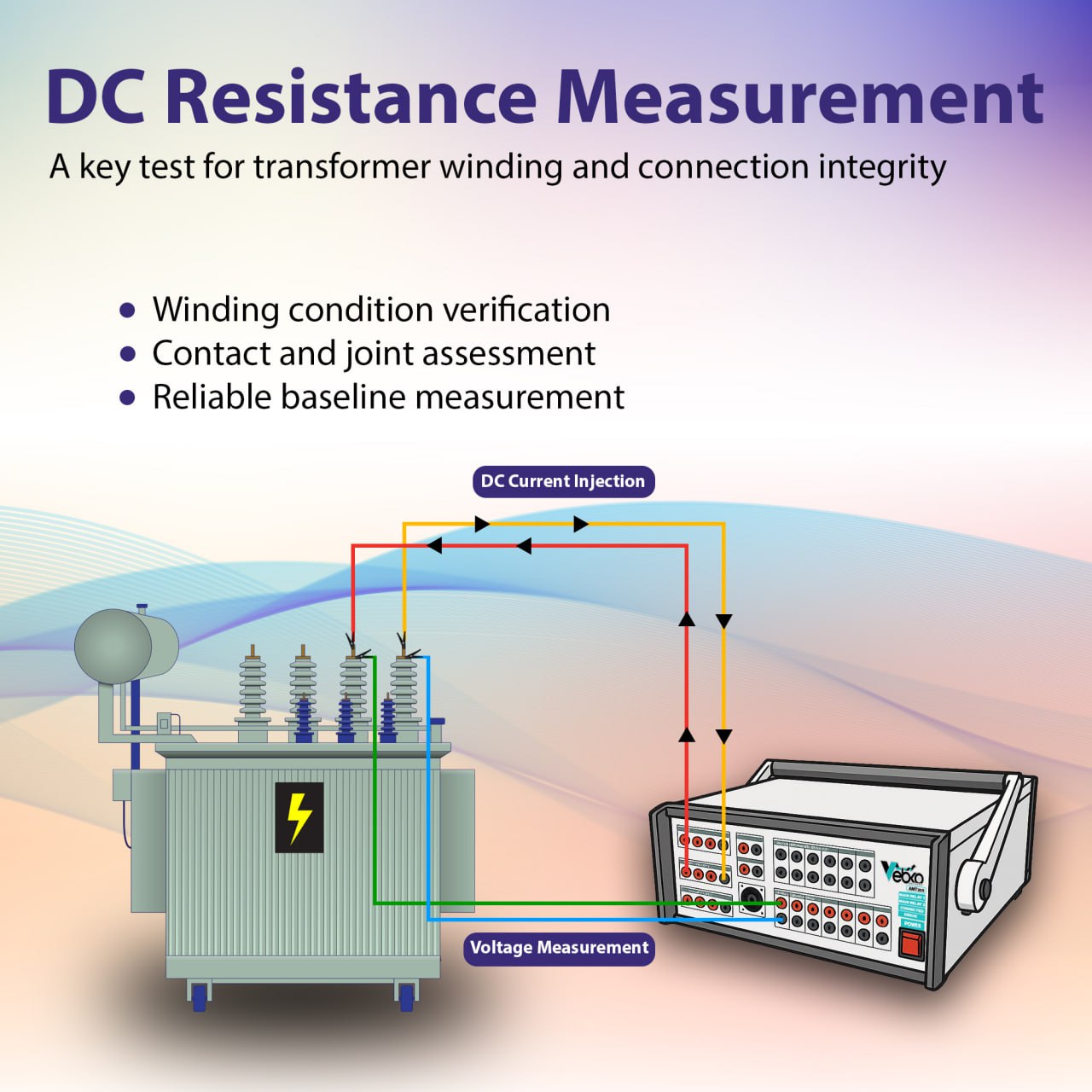

 When a DC current is injected into a transformer winding, the winding’s inductance causes a transient response. During this phase, the measured voltage (and calculated resistance) may fluctuate and should not be recorded.
📉 As the magnetic circuit saturates and the transient decays, the voltage stabilizes. Only at this steady-state condition does the measured DC resistance represent the true winding resistance.

🛠️ Why this matters:
 ▪️Recording values too early leads to incorrect resistance readings
 ▪️Comparing unstable values can mask real winding problems
 ▪️Accurate timing ensures repeatable and comparable results over time

 🌠 With Vebko testing solutions, engineers can:
 ☑️ Control DC current injection precisely
 ☑️ Monitor transient and steady-state behavior clearly
 ☑️ Capture resistance values at the right moment
 ☑️ Perform reliable commissioning and maintenance tests
Because accurate diagnostics start with correct measurement principles.

Vebko, built for engineers who measure with understanding🖤
