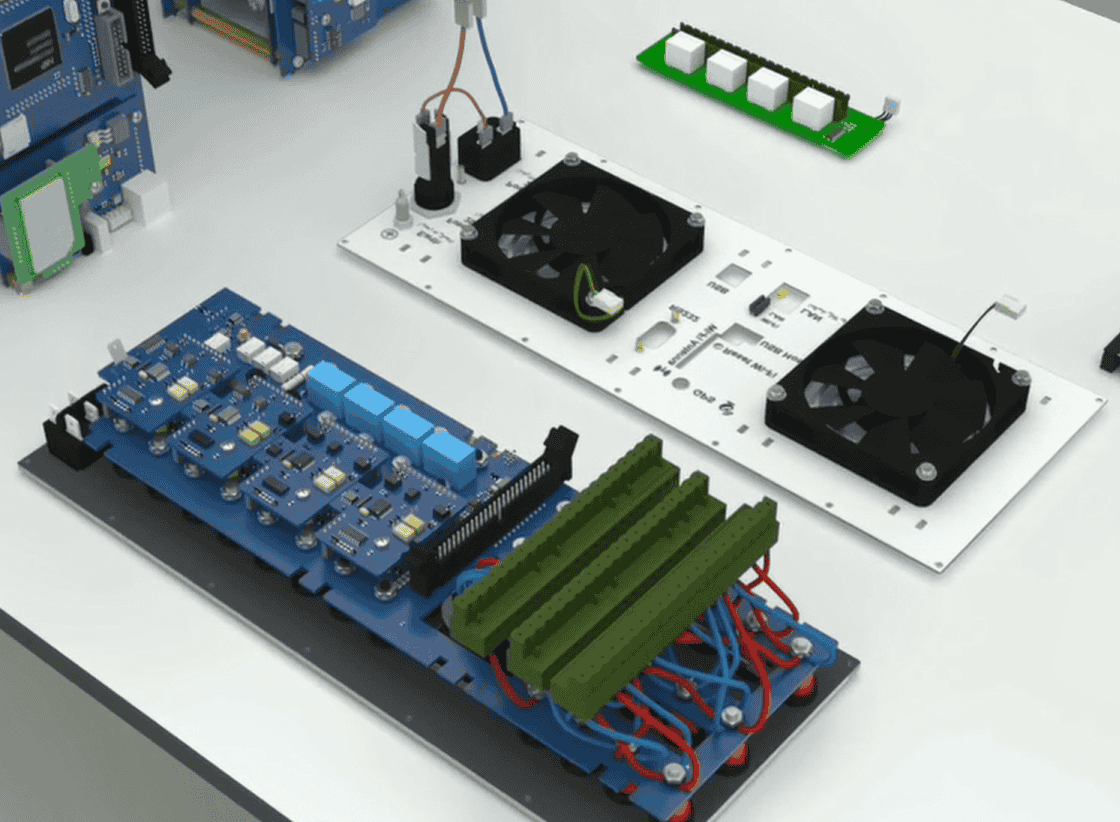

Assembling Stages of AMT105 Tester

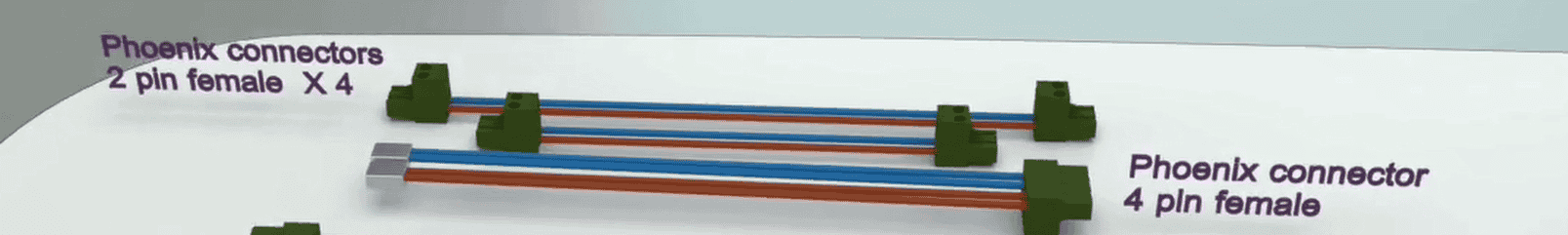

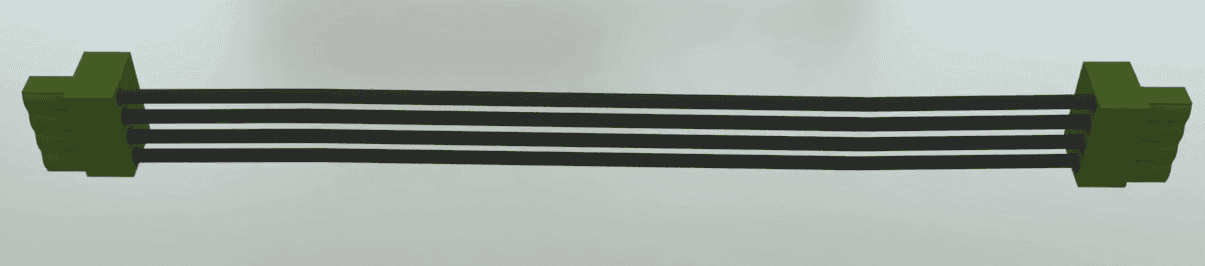

Four wires with 4 pin female Phoenix connectors

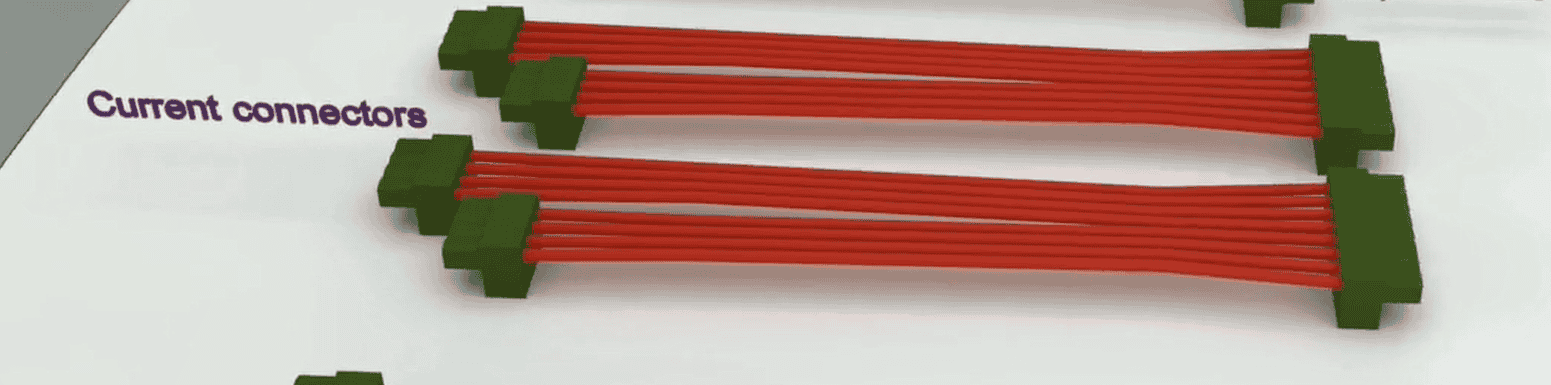

Current connectors

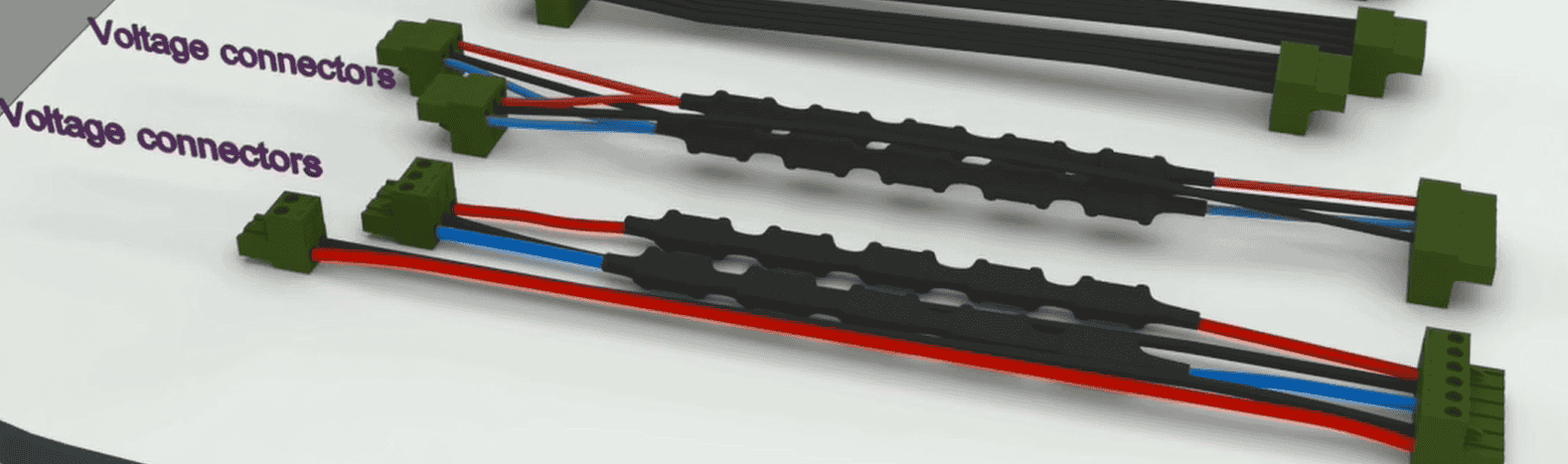

Voltage connectors

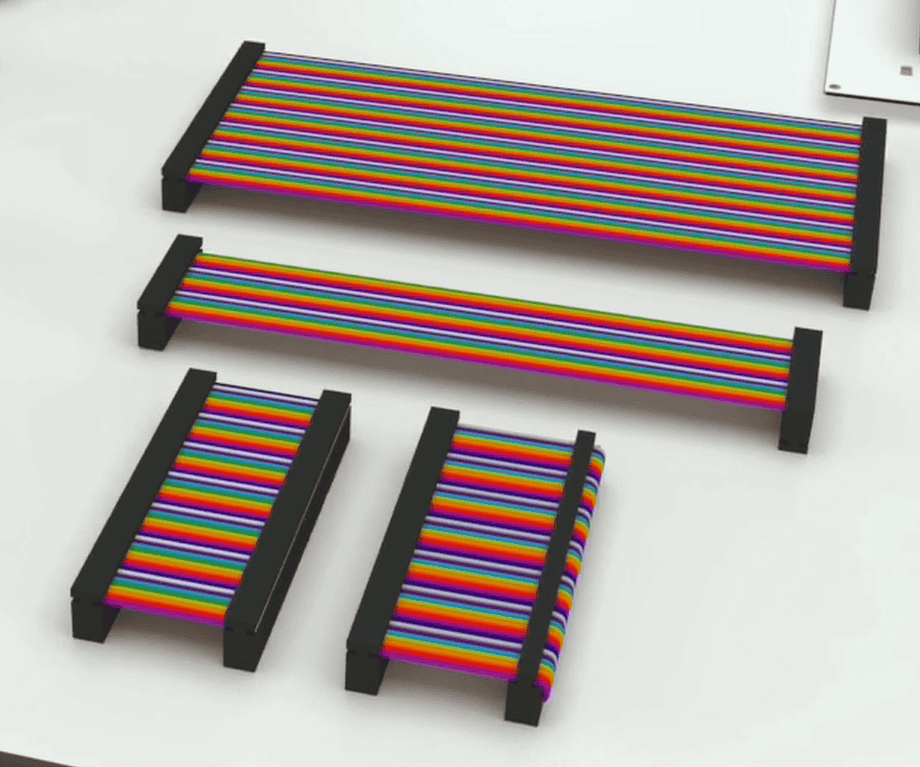

Ribbon cables

Neutrik board

Back panel

Front panel

Switching module

Complete side of switching module

Incomplete side of switching module

Amplifier module

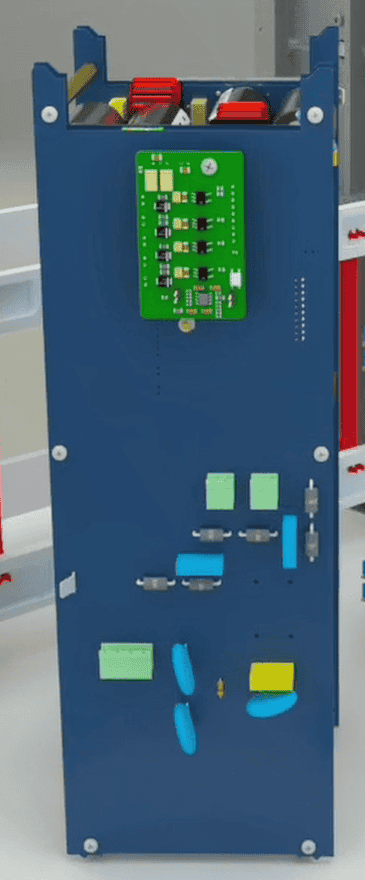

Complete side of amplifier module

Incomplete side of amplifier module

Case

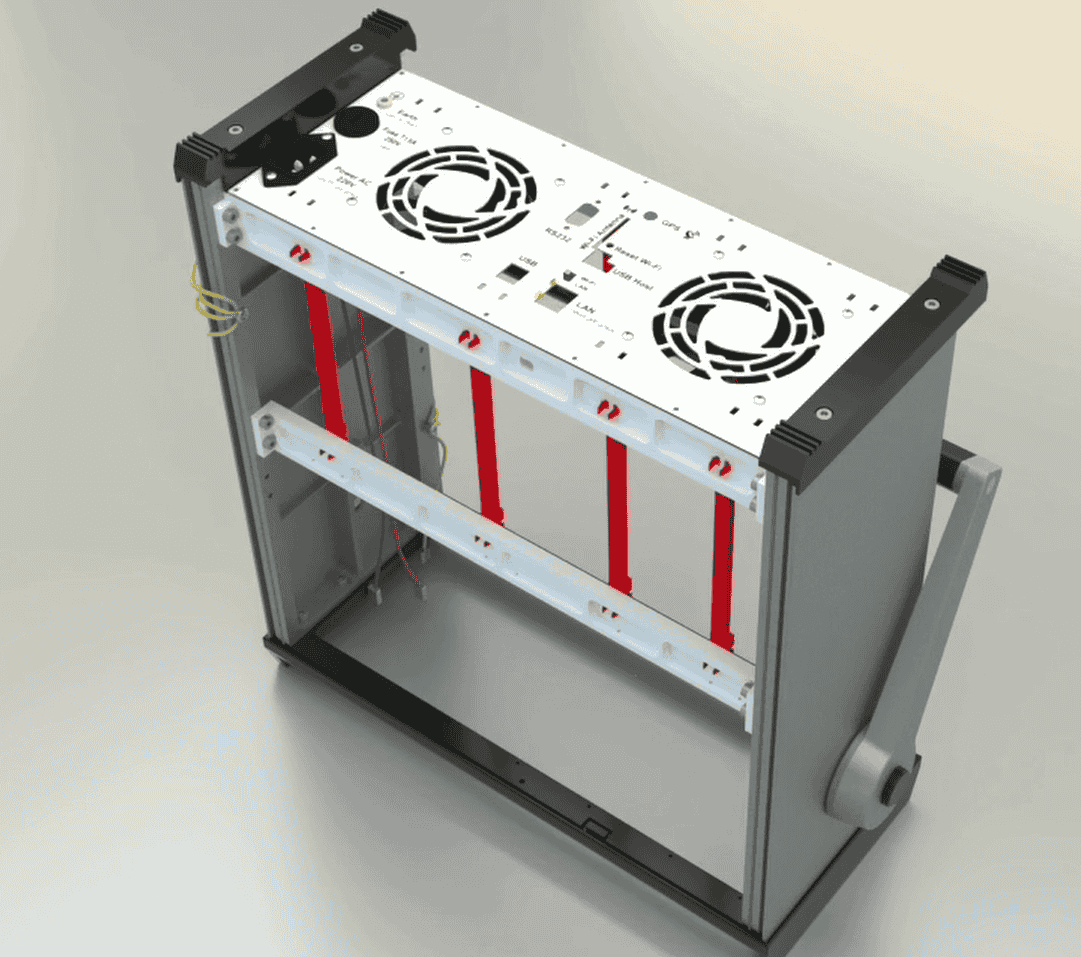

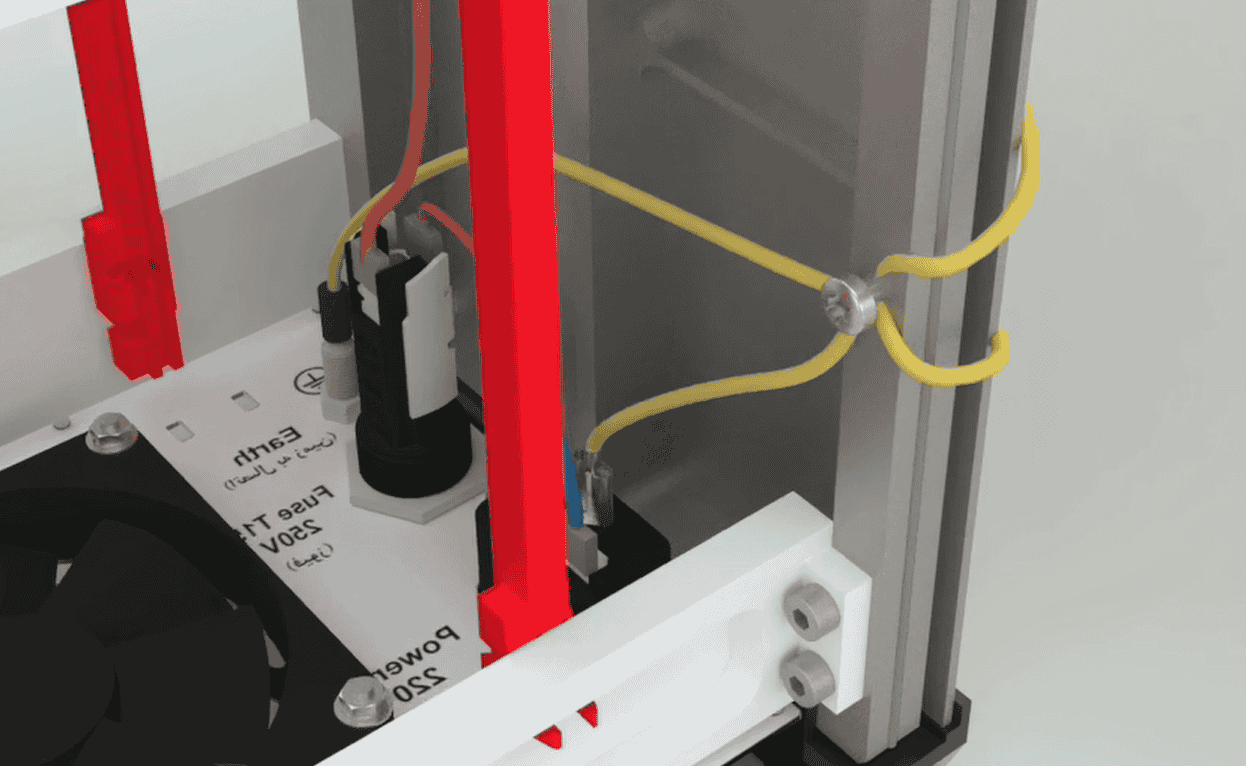

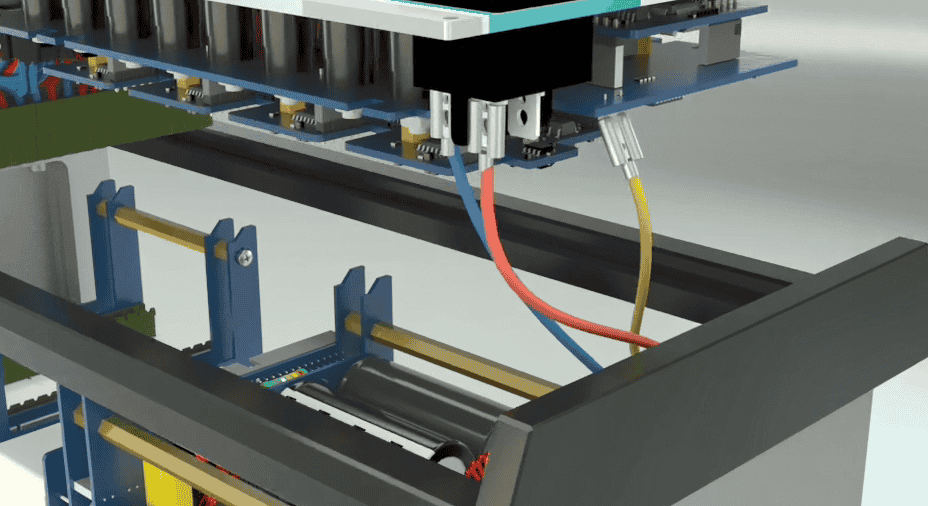

To assemble the device, you must first install the back panel on the case. Stand the case in front of you, in a way that the power socket is on your right side. Connect one of the earth wires to the power socket and the other one to the earth socket.

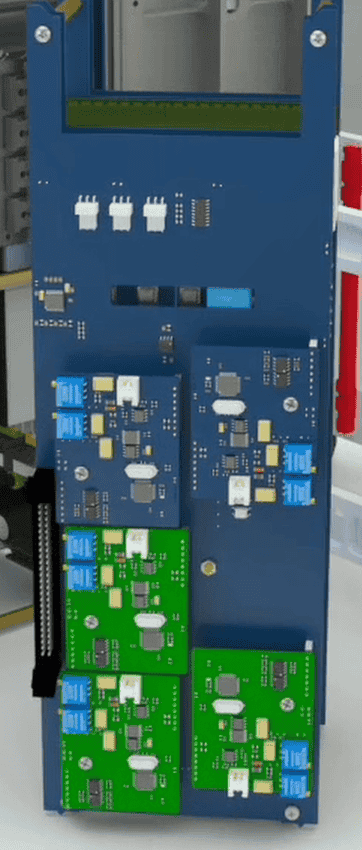

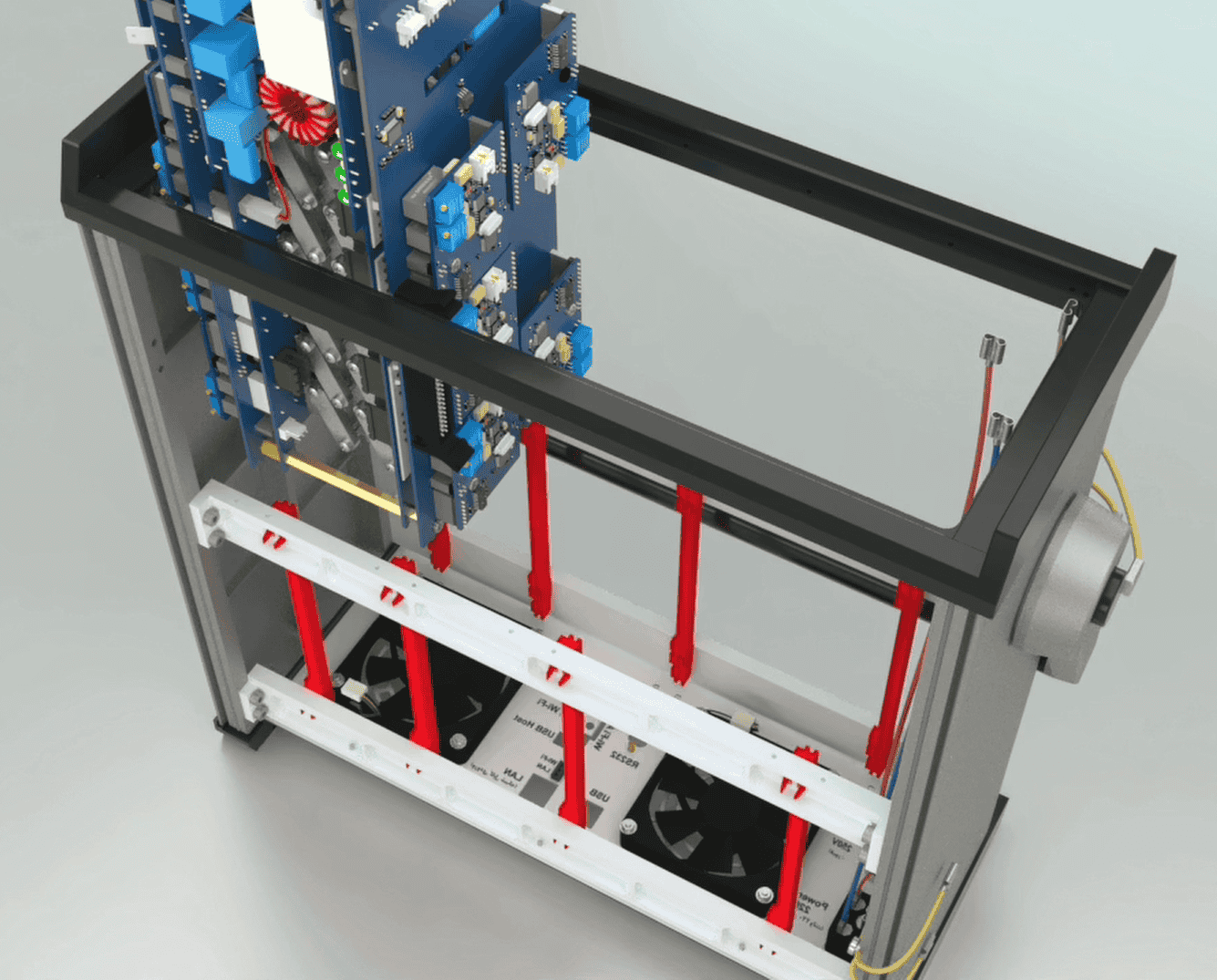

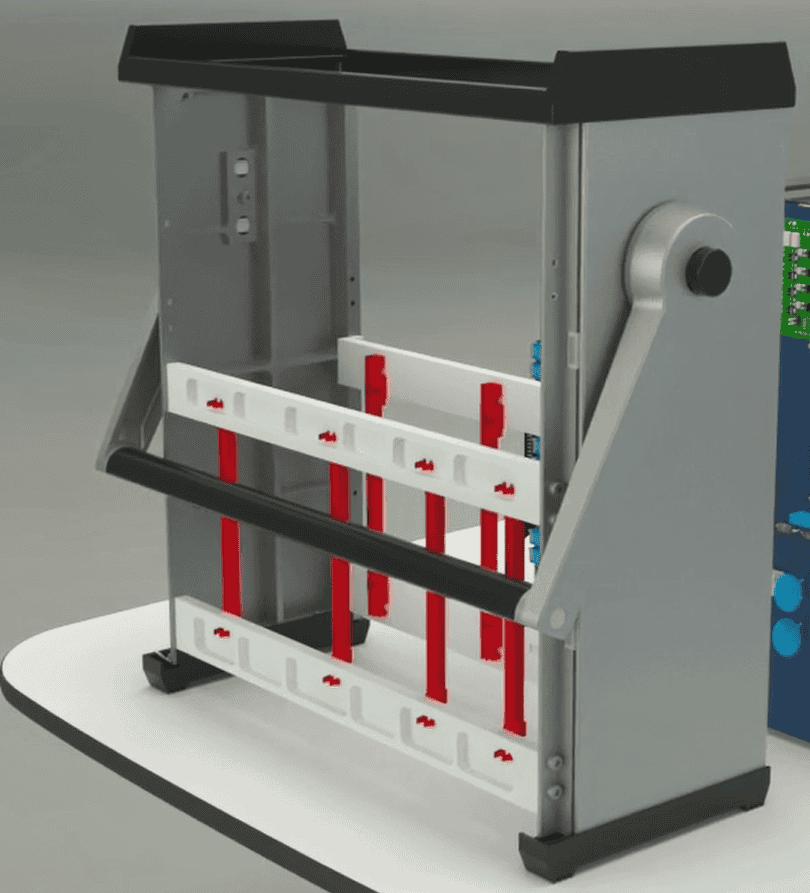

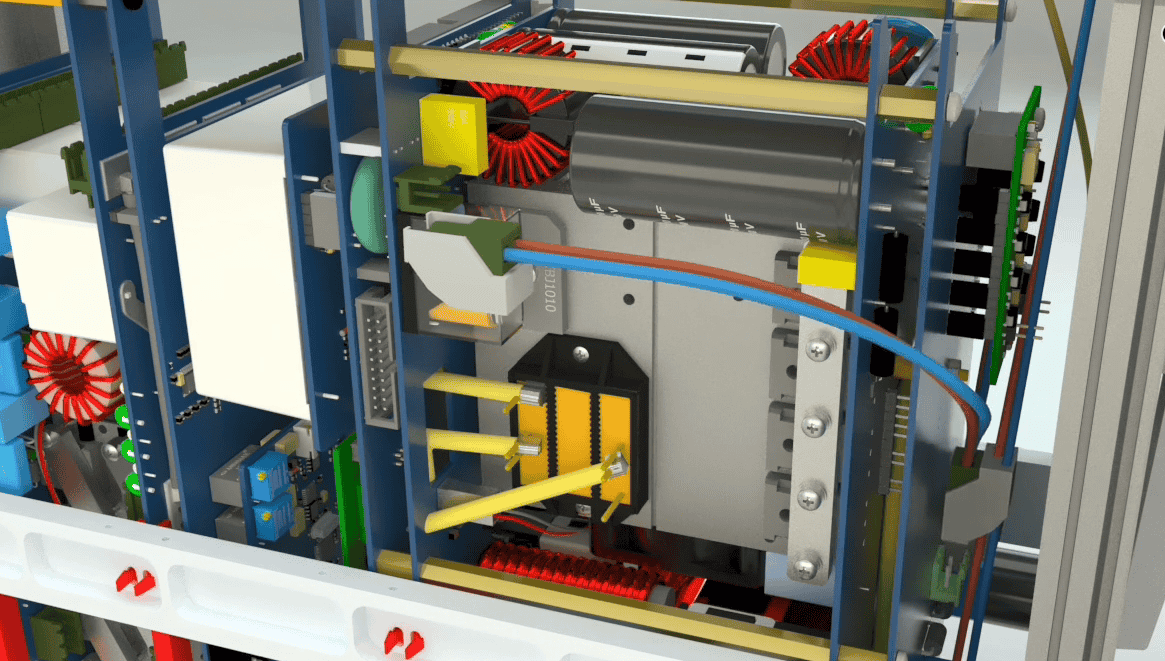

The amplifier module is placed into the case where the racks are less spaced (opposite to the input power socket).

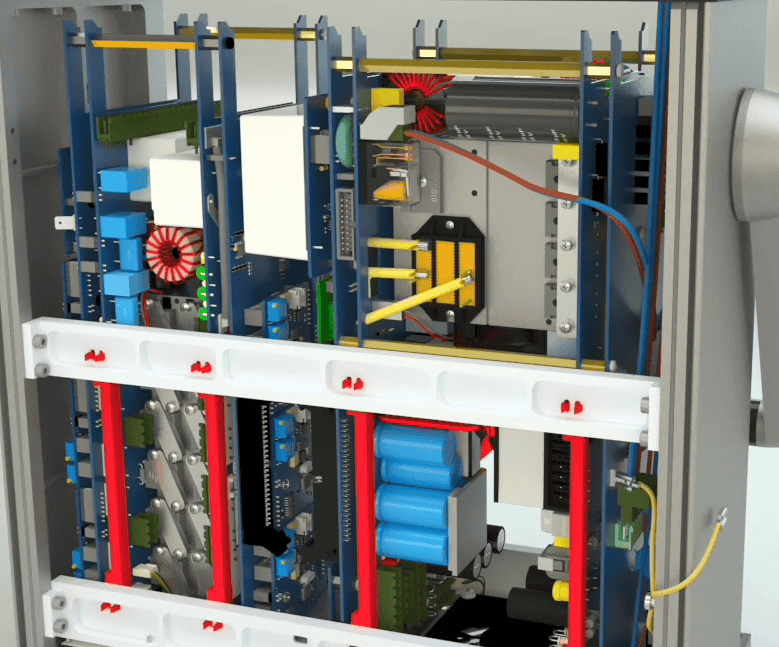

The complete side of the amplifier goes to the case wall. The edges of the module should be placed inside the 4 racks.

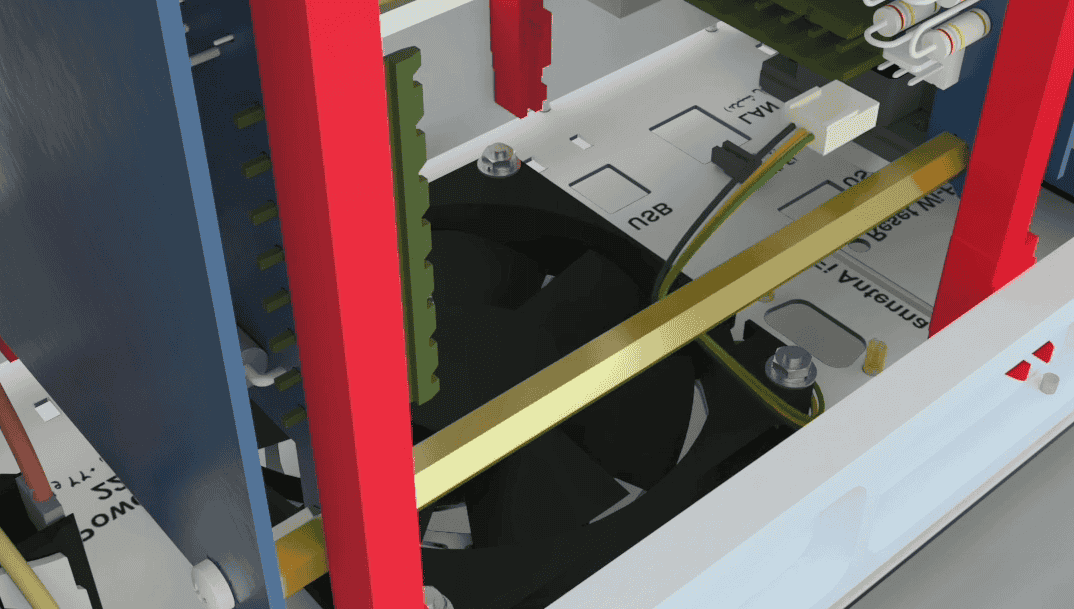

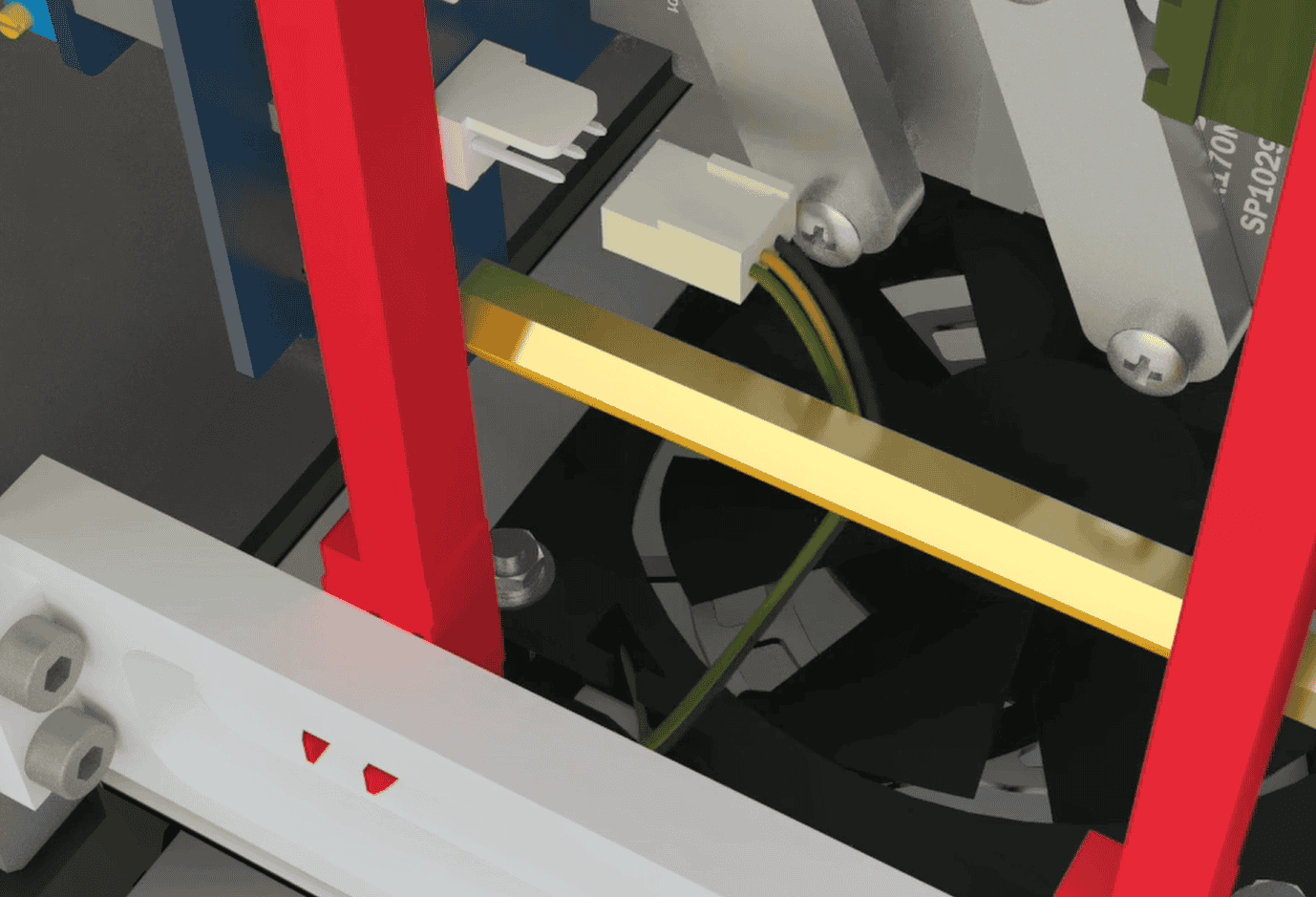

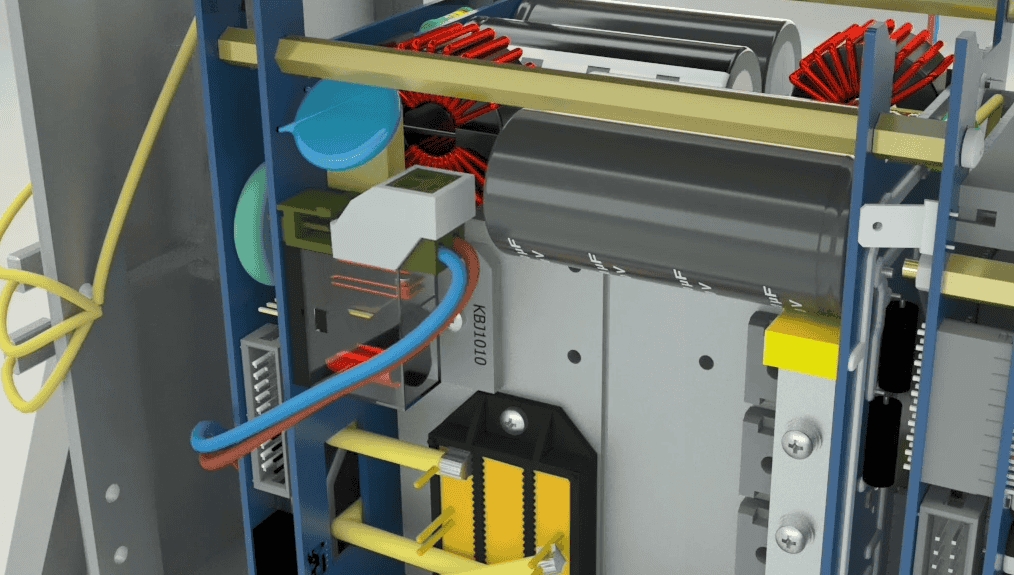

Insert the module up to 5 cm to the end of the case, then take the fan wire from the back of the Spacer and connect the socket to the amplifier then push the module to the bottom of the case.

Note: make sure that the fan wire is not under any modules or inside the fan.

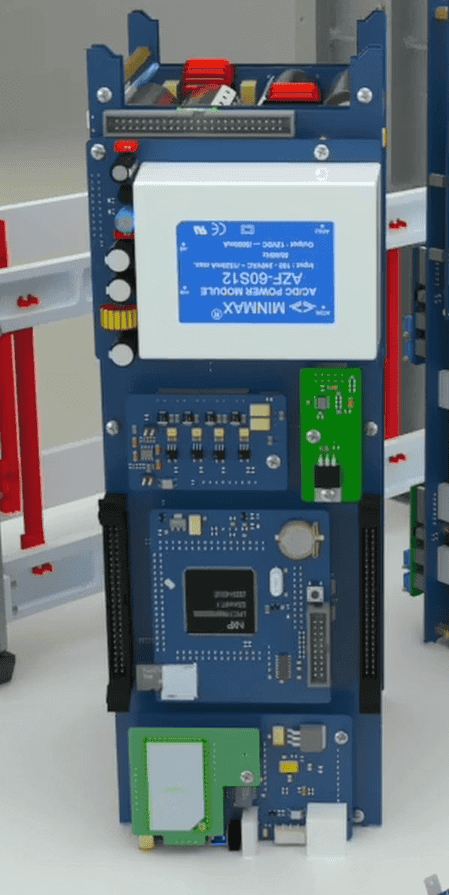

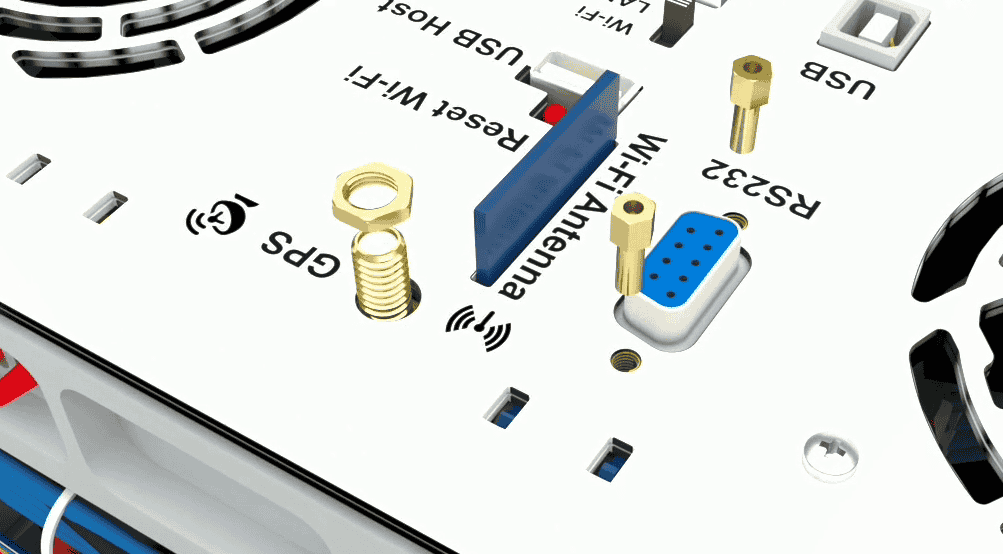

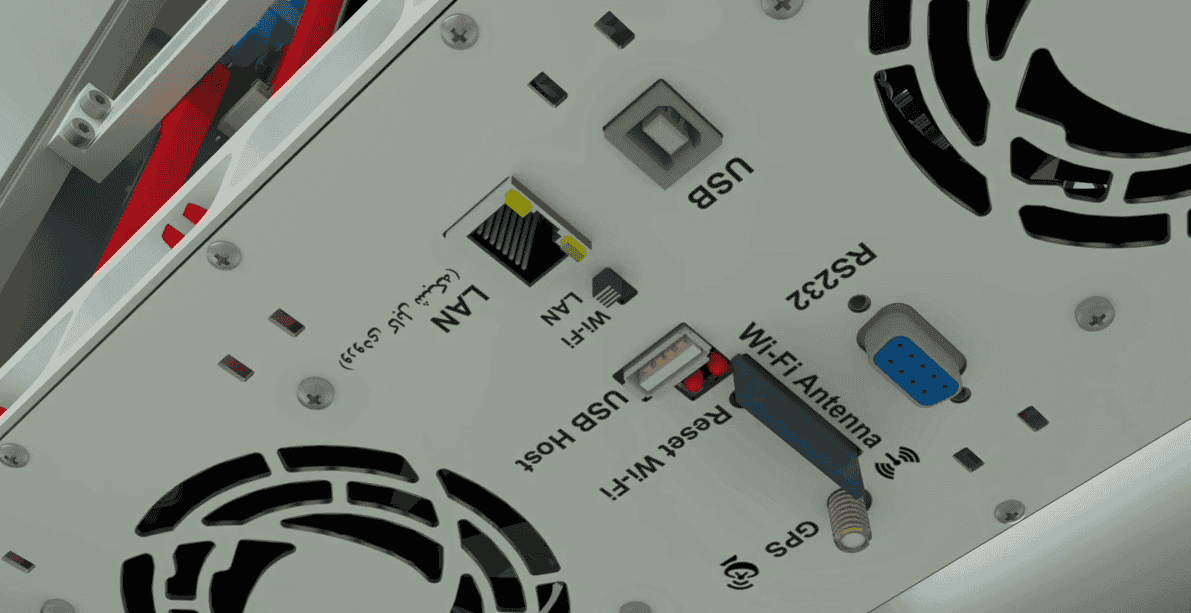

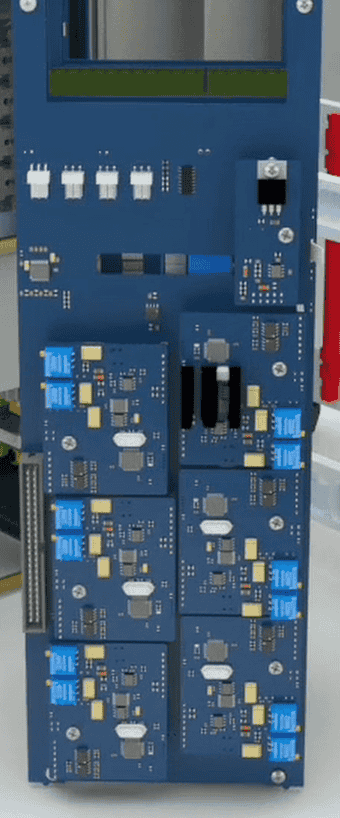

The incomplete side of the switching module (the one that only has a command board) should be on the side of the case’s wall, so that the Ethernet, USB, RS232, Wi-Fi and GPS ports are downward and placed in the rear panel.

Insert the module up to 5 cm to the end of the case, then take the fan wire from the back of the Spacer and connect the socket to the switching module finally push the module to the bottom of the case.

By shaking the GPS port, the switching module must be fully placed at the bottom of the case.

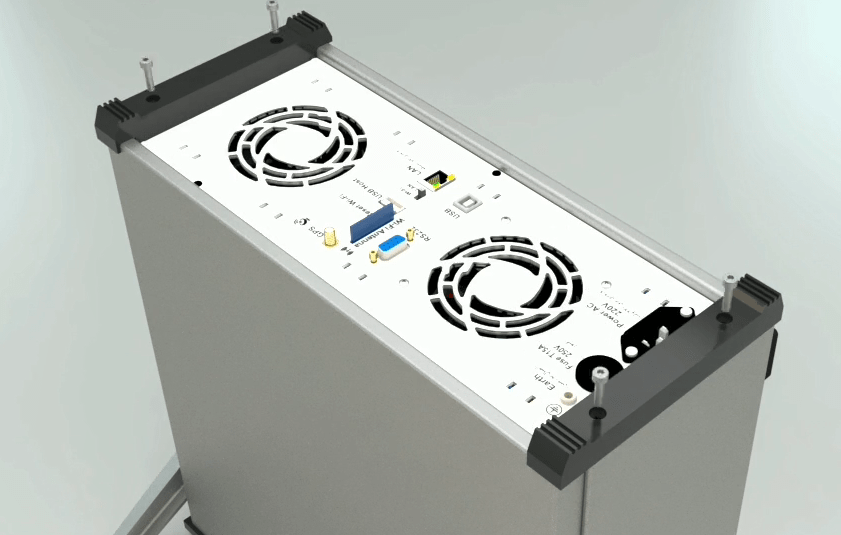

Ethernet and USB socket must be 1 to 2 mm away from the back of the case. If the socket of the Ethernet and USB are stuck, In case ports are stuck shaking them allows them to come out from the back panel.

Note: make sure that the fan wire is not under any modules or inside the fan.

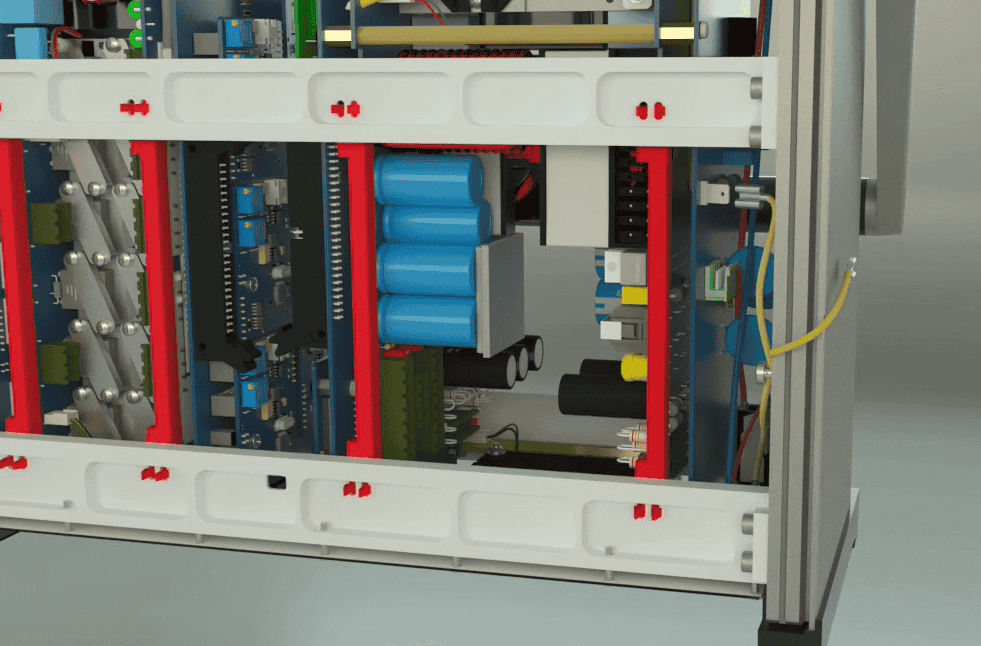

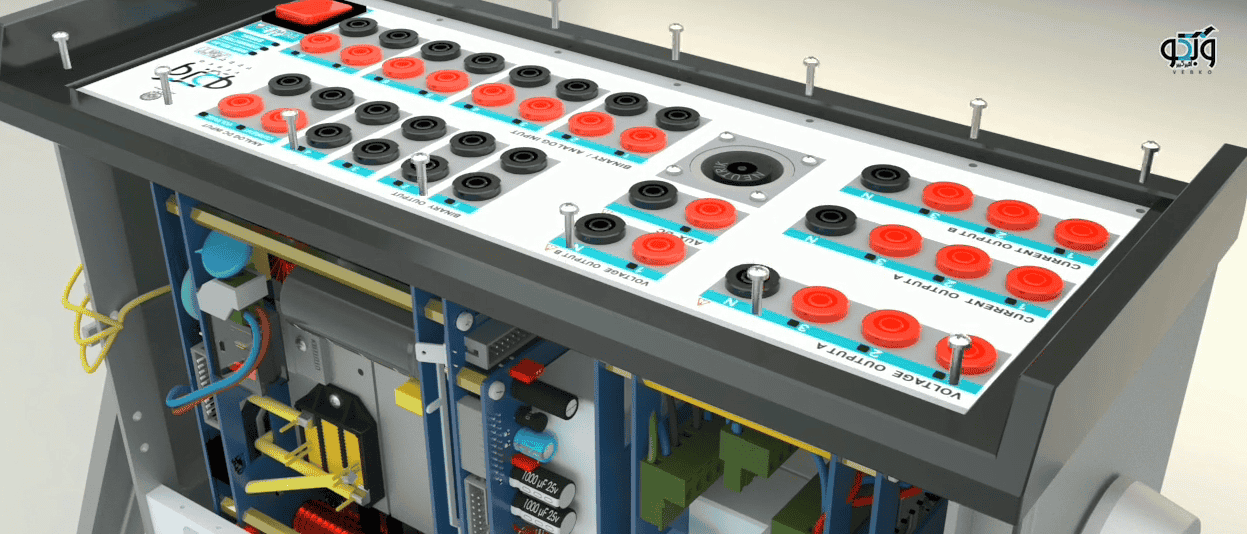

Before installing the front panel, check that the varnished wire connected to the back panel is completely straight.

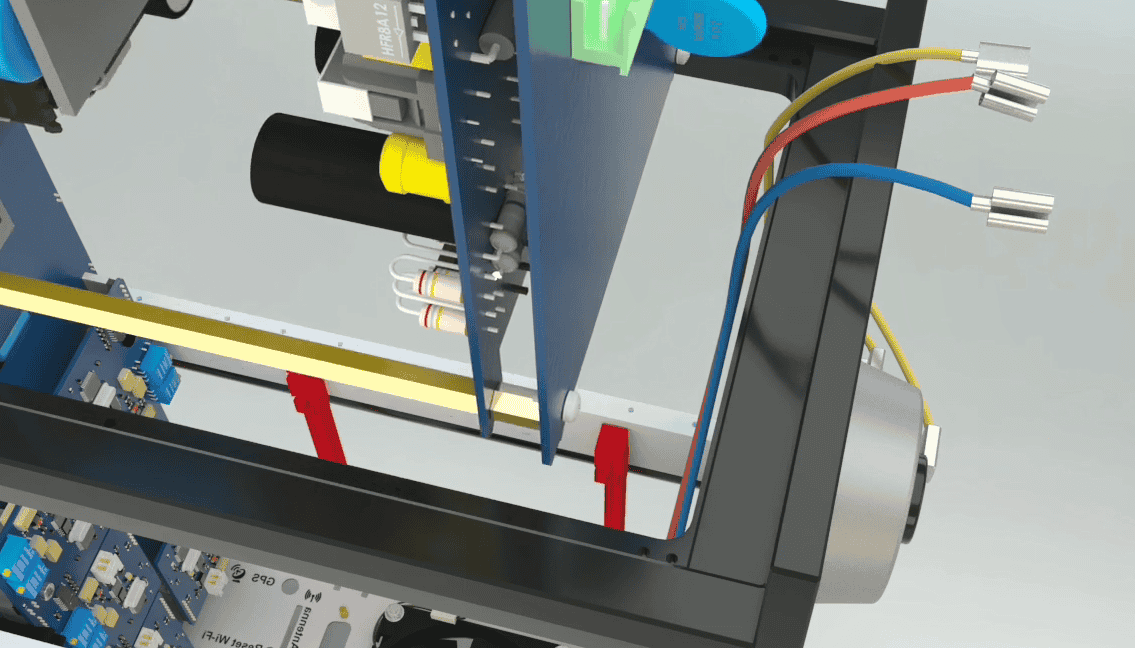

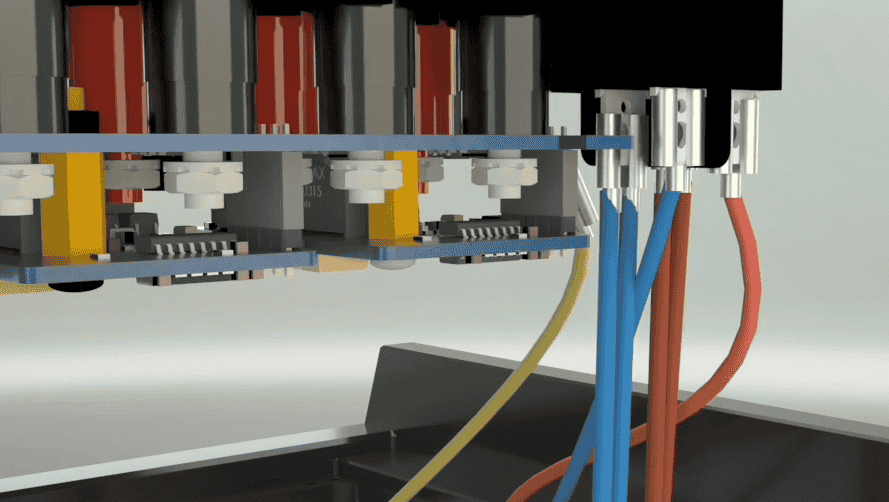

Connect the two heads of wires that come from the back panel to the zero side of the power switch on the panel.

The guards must be faced outwards so that they can be easily opened.

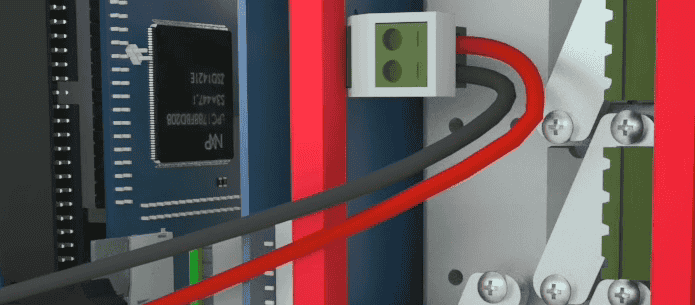

First, connect two 2 pin female Phoenix connectors to the incomplete board of the switching modules. Connect the other side to the switching modules.

Connect one side of the corresponding power cord to 1 key and connect the Phoenix side to the incomplete switching switchboard.

First, on the left side, connect the corresponding Phoenixes to the amplifier. You should first connect the two 16 pin Phoenixes and then connect the two 5 pin Phoenixes.

Then install the appropriate phoenixes to the right side of the amplifier.

First, turn the device in a way that its socket is to your left and the Neutrik board is placed between the amplifier phoenixes so that its socket is to your right. The socket connects to the complete board of amplifier.

The holder is placed half way on the 6 pin Phoenix voltage connectors. Connecting the voltage 6 pin Phoenix on which the holder is placed to the switching and put the holder in place.

2 pin female Phoenix connectors with shorter wires) red and black) should be connected to the upper 2 pin male Phoenix connectors.

3 pin female Phoenix connectors with shorter wires) red, black and blue (should be connected to the lower 3 pin male Phoenix connectors.

Tip: Before placing the phoenixes on the amplifier, place the corresponding holders on phoenixes.

First, put a holder on the 8 pin current Phoenix (blue wire) and connect the internal 8 pin Phoenix to the incomplete switching board.

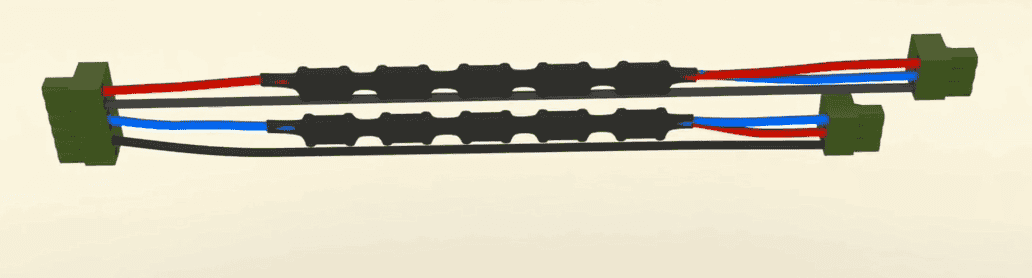

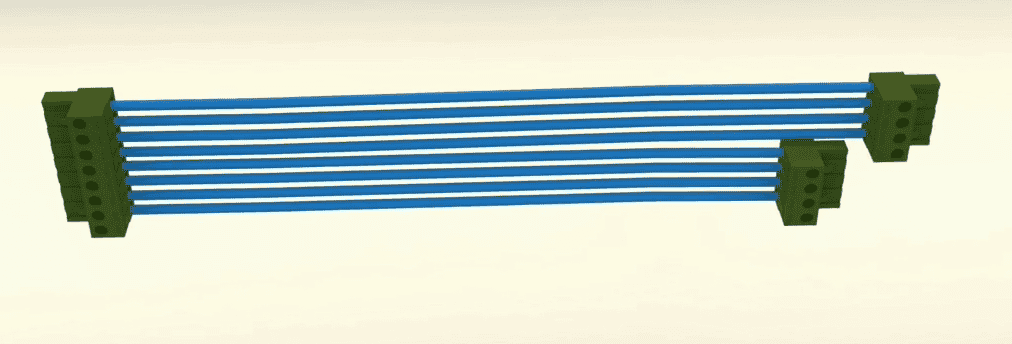

Connect the 4 pin blue longer Phoenix holder to the second male Phoenix from the bottom. Connect the 4 pin blue shorter Phoenix holder to the first male Phoenix from the bottom.

Put a holder on the 4 pin current Phoenix (black wire) and connect it to the incomplete switching board. Connect the 4 pin black male Phoenix to the first male Phoenix from the top.

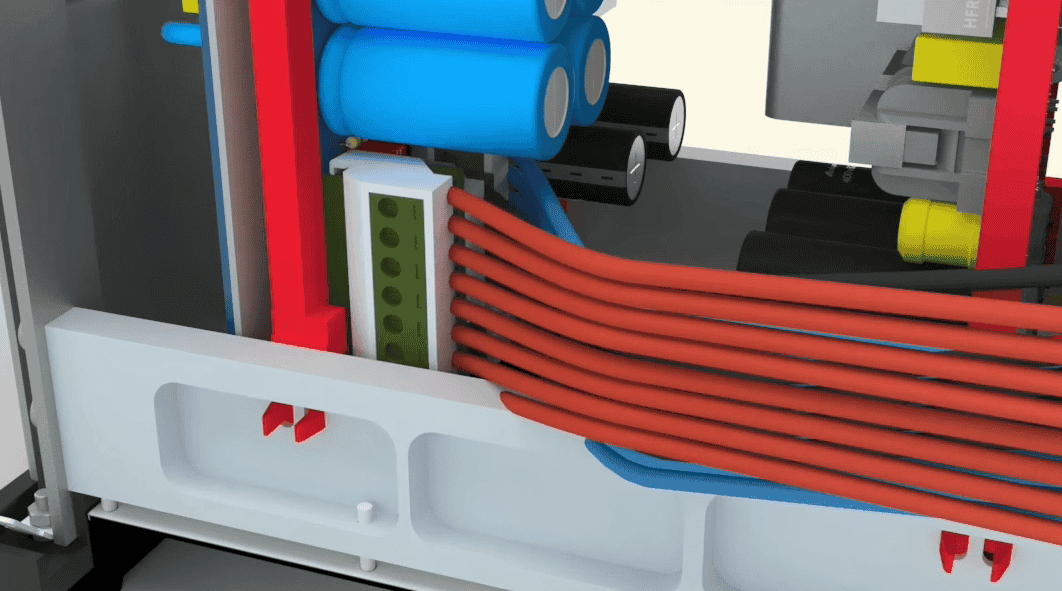

Put an 8 pin Phoenix (red wire) current and connect it to the 8 pin male Phoenix of the incomplete switching board.

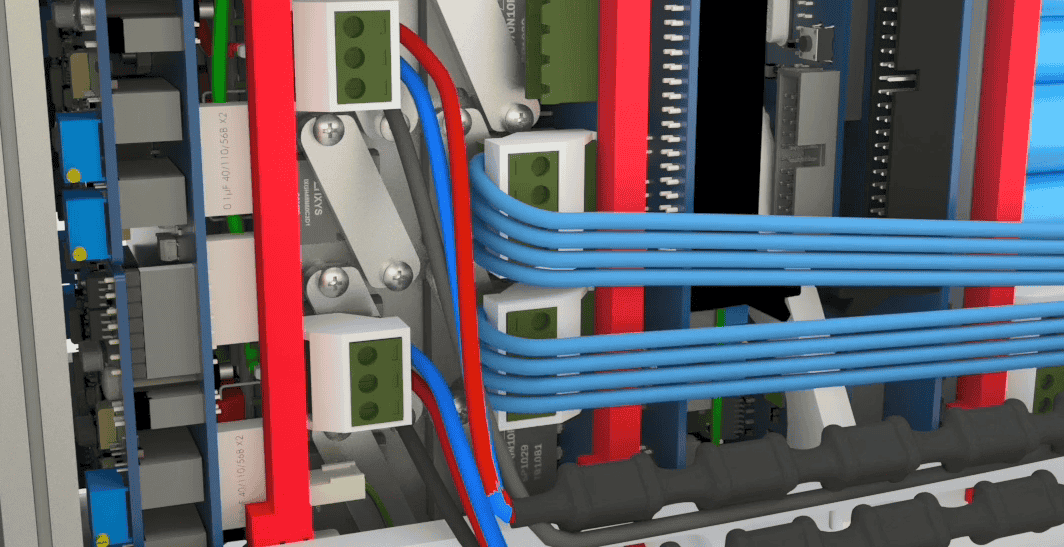

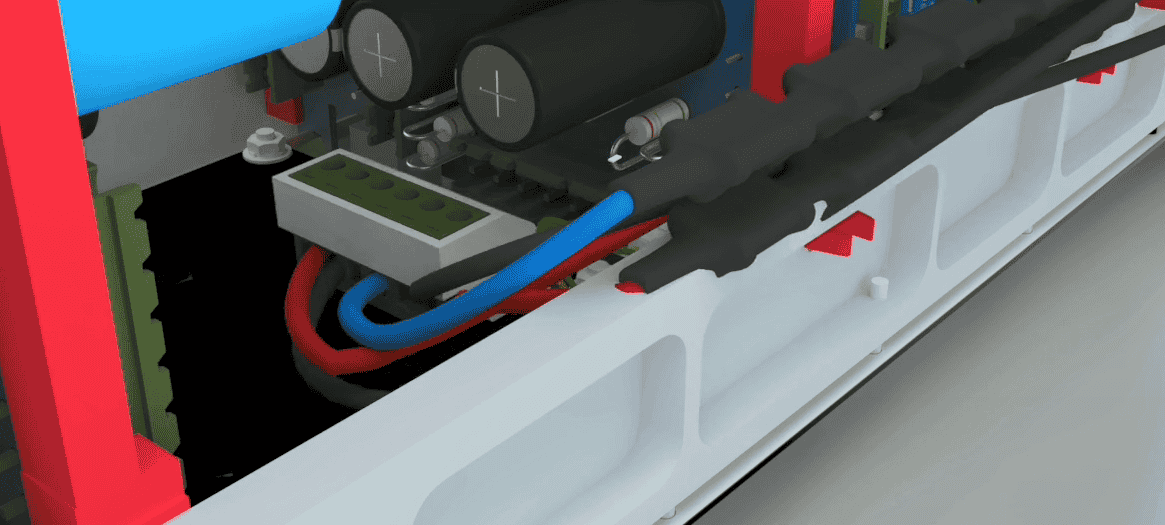

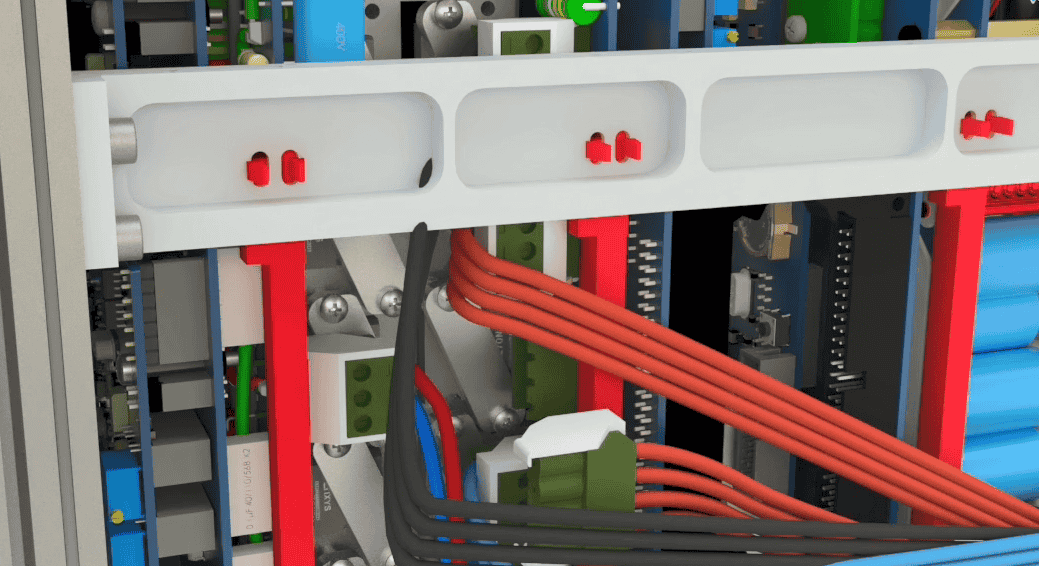

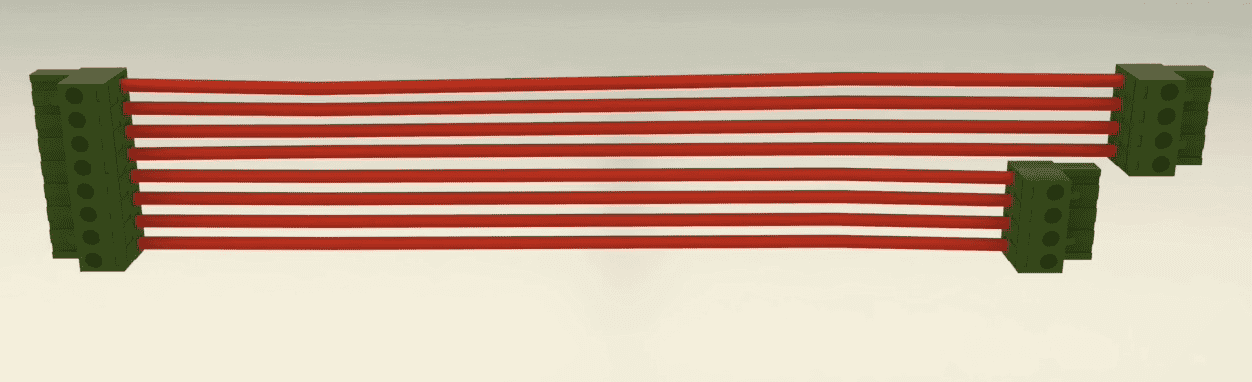

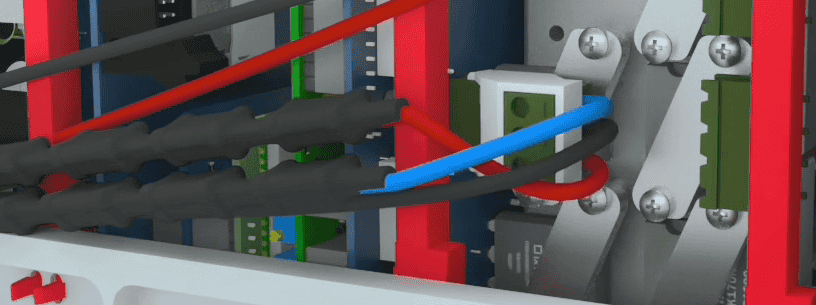

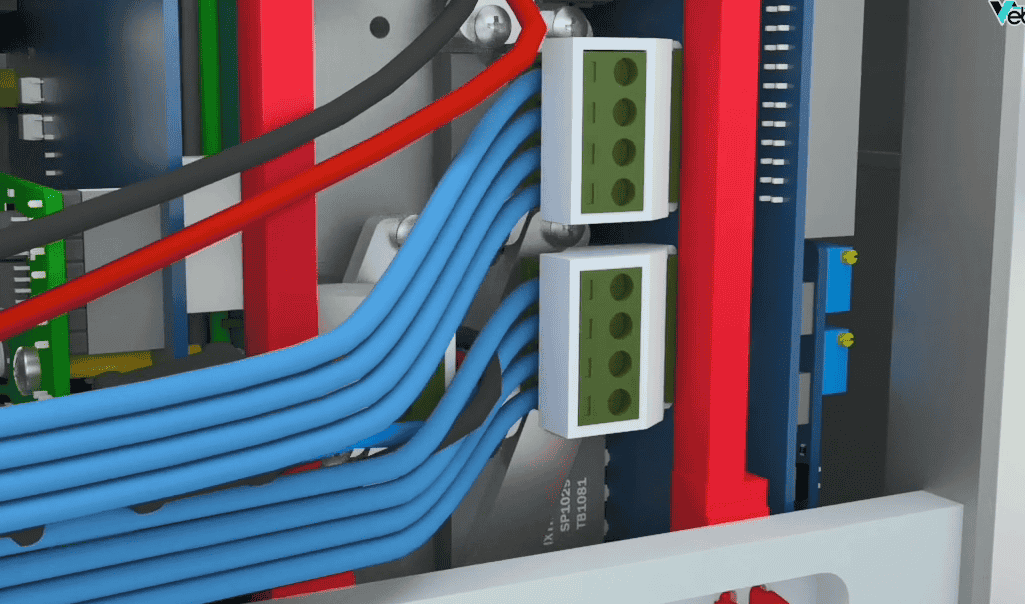

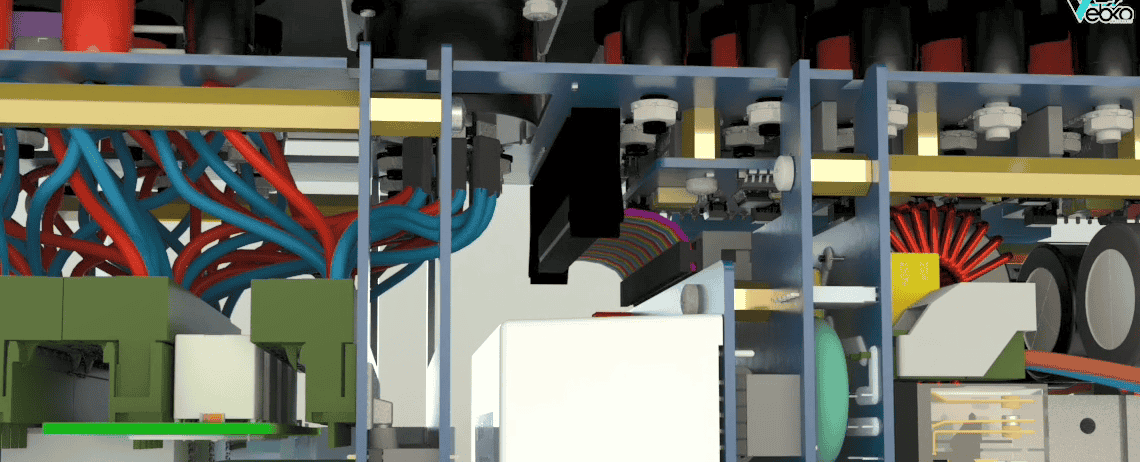

Connect the 4 pin female Phoenix with longer red wire holder to the second male Phoenix from the top. Connect the 4 pin female Phoenix with a shorter red wire holder to the third male Phoenix from the top. Then assemble all the current and voltage wires with a cable tie wrap.

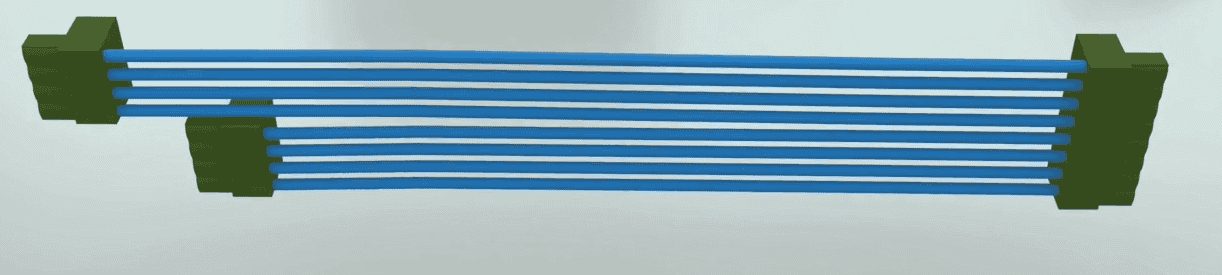

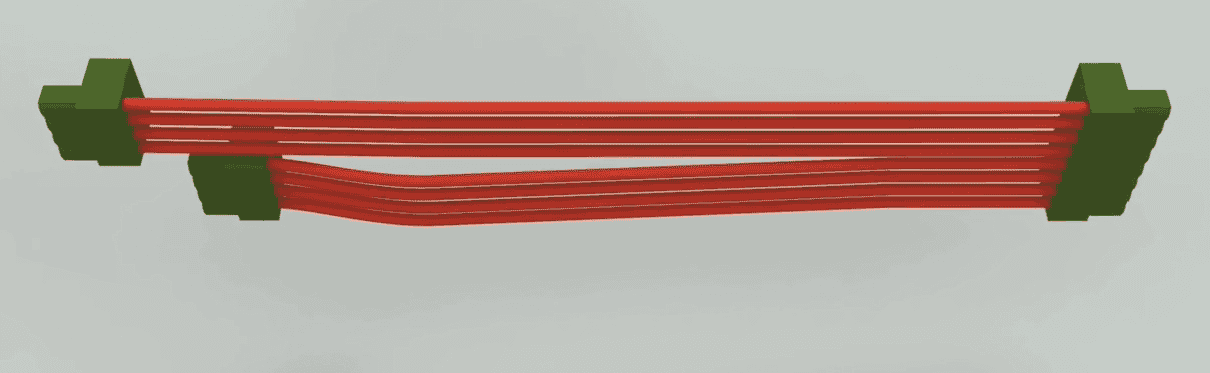

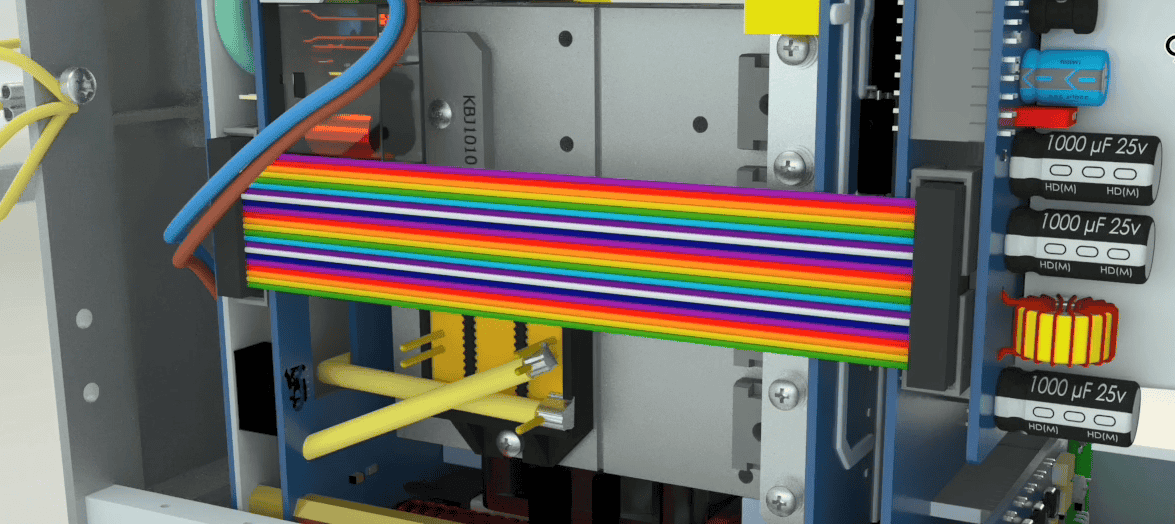

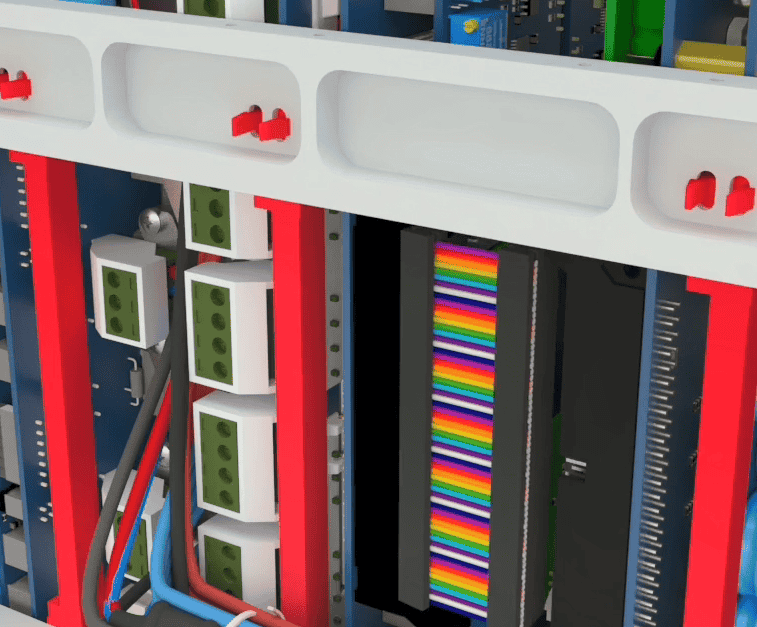

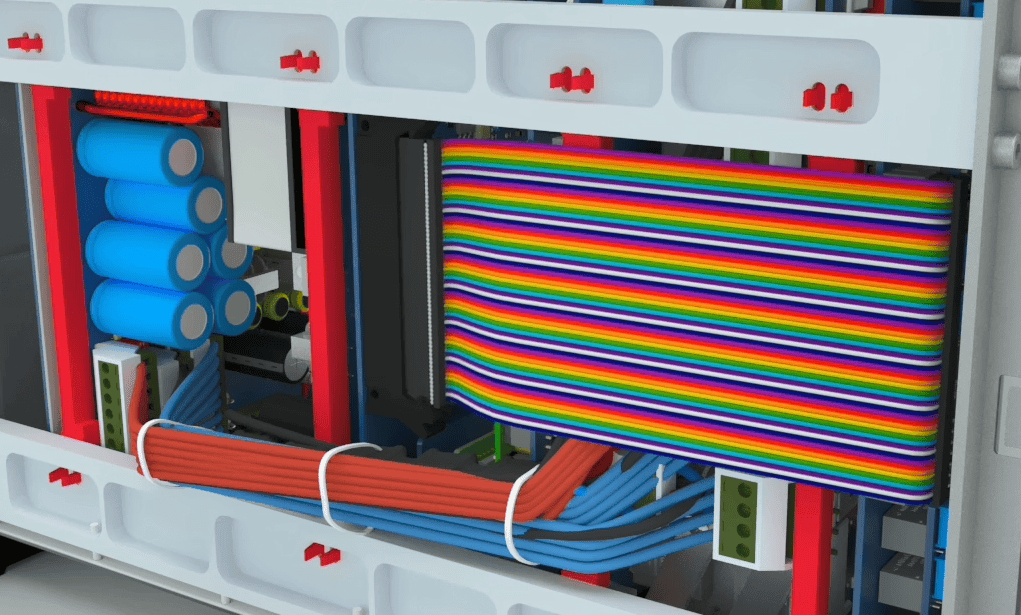

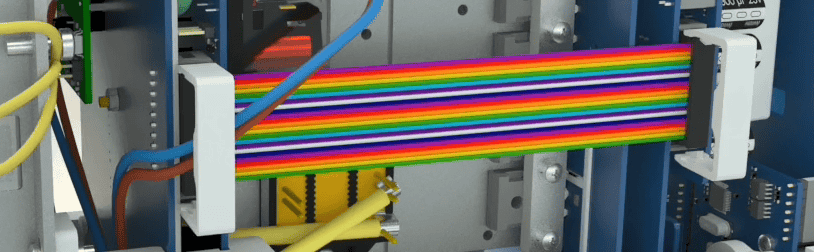

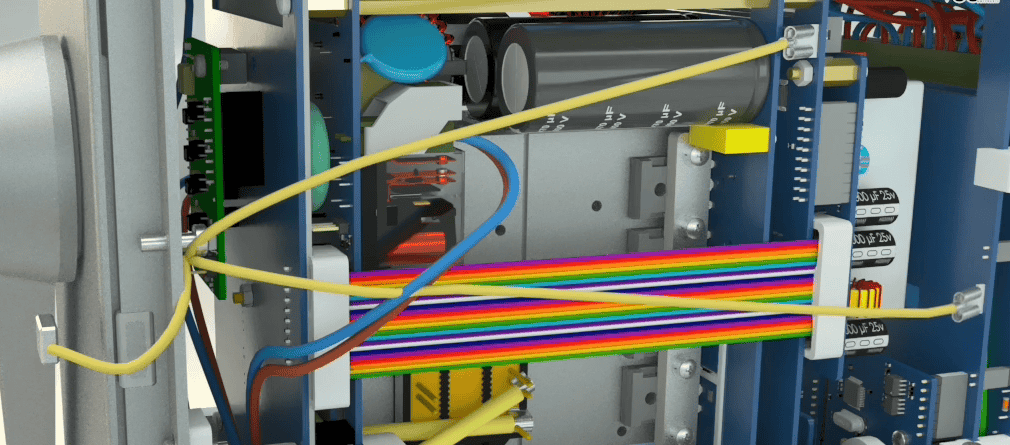

This ribbon cable connects the entire side of the switching range to the full range of the amplifier.

Connect the holder from one side to the IDC and connect it to the IDC by using a screwdriver or one forceps.

Connect the incomplete cable to the complete side of the switching module.

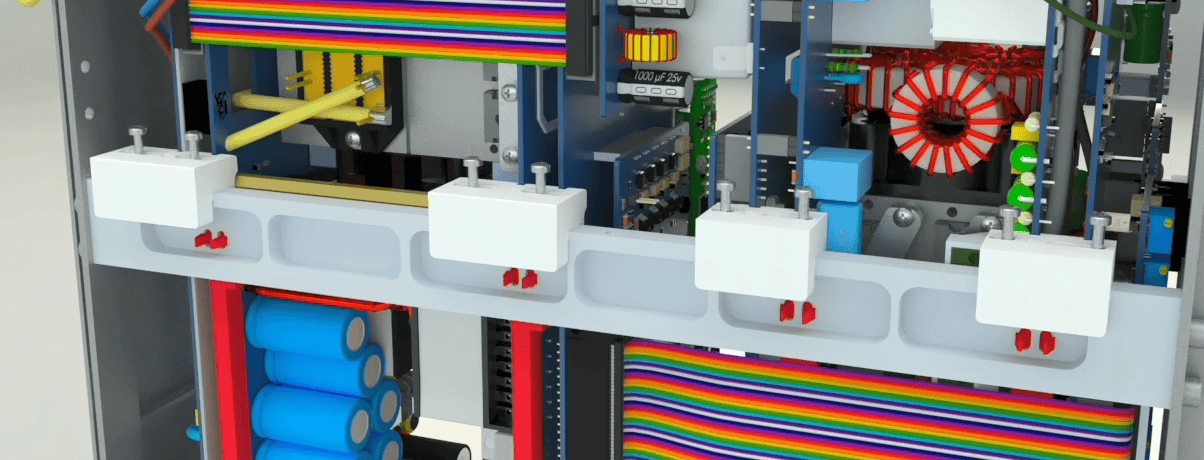

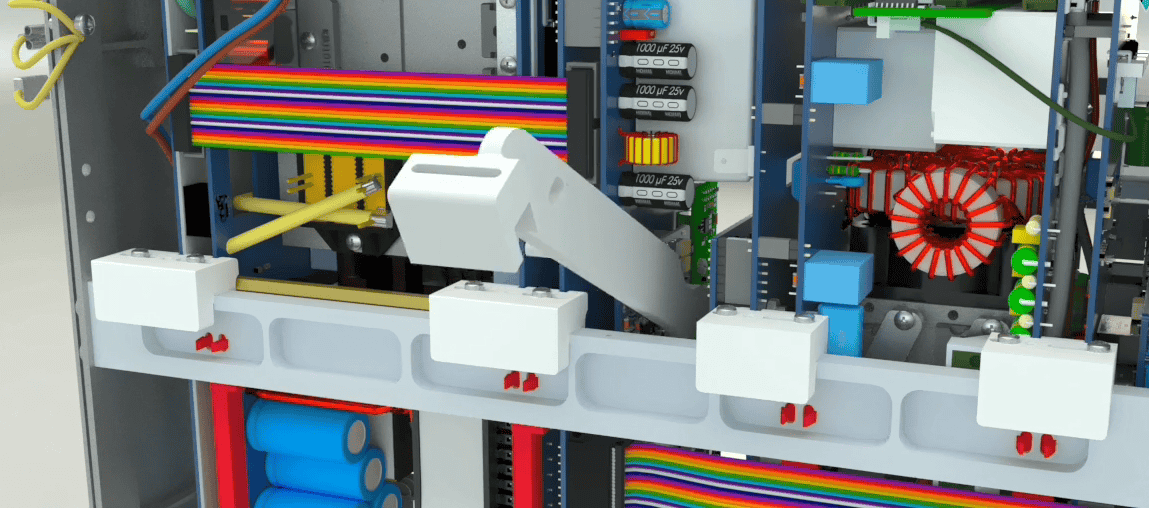

Holders must be placed on the rails and the two slots embedded on them should be placed on the module and the original board. Each holder is closed and tightened by 2 screws 16.5×2 soaked in a special screw along with a ribbon gasket on the holder and middle rails.

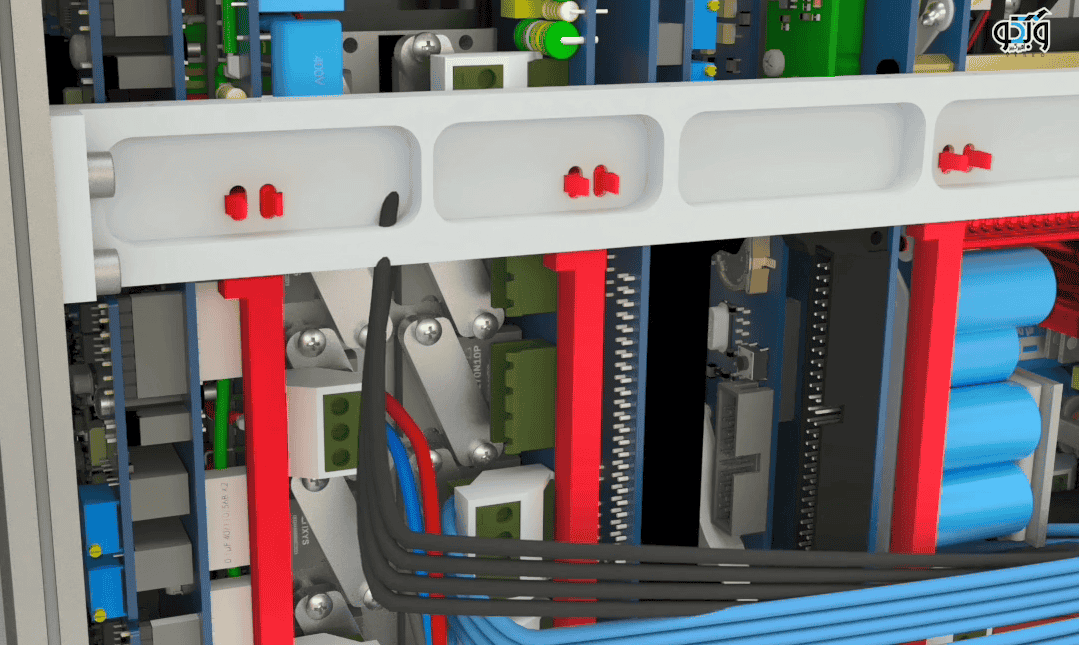

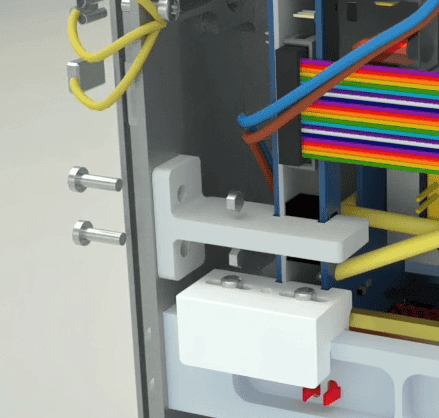

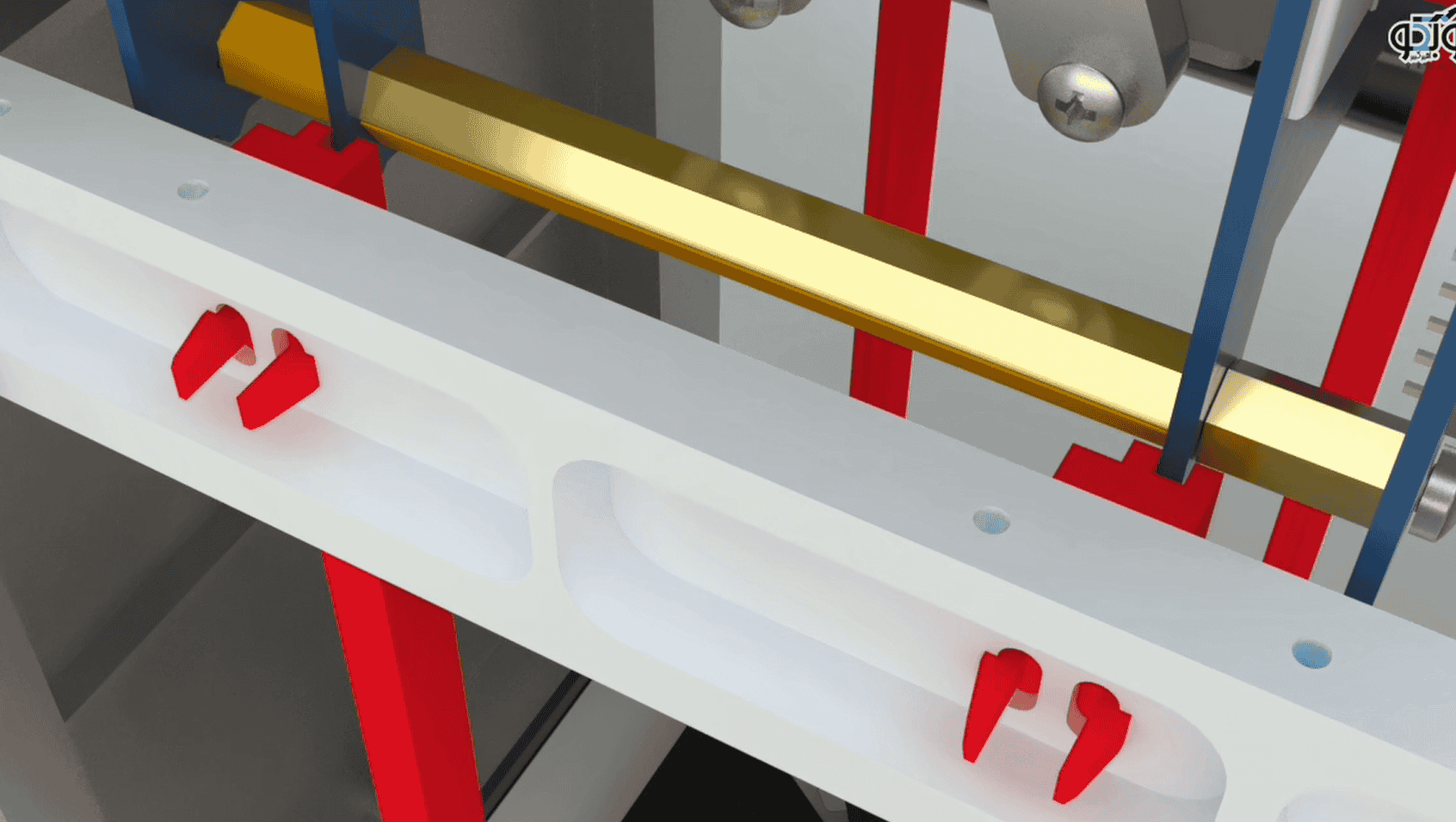

Place the micro holder on the middle rail on the one side and its two pins must be placed on the lower rails of the case on the other side.

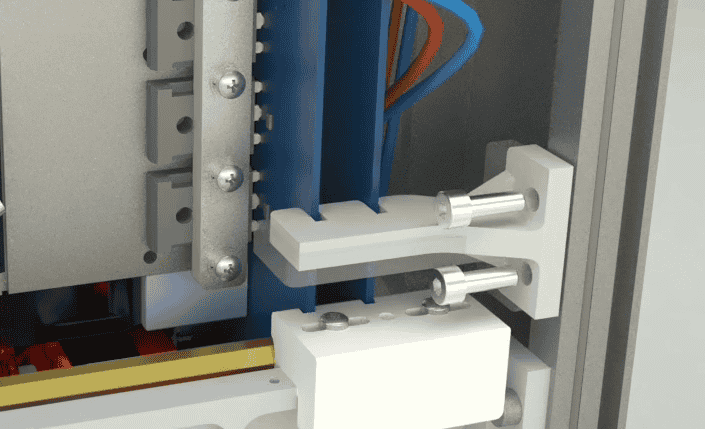

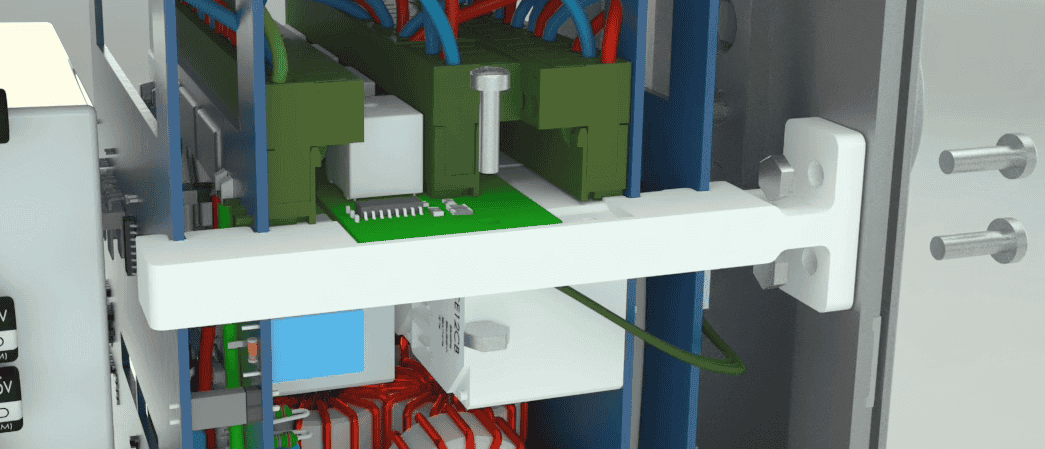

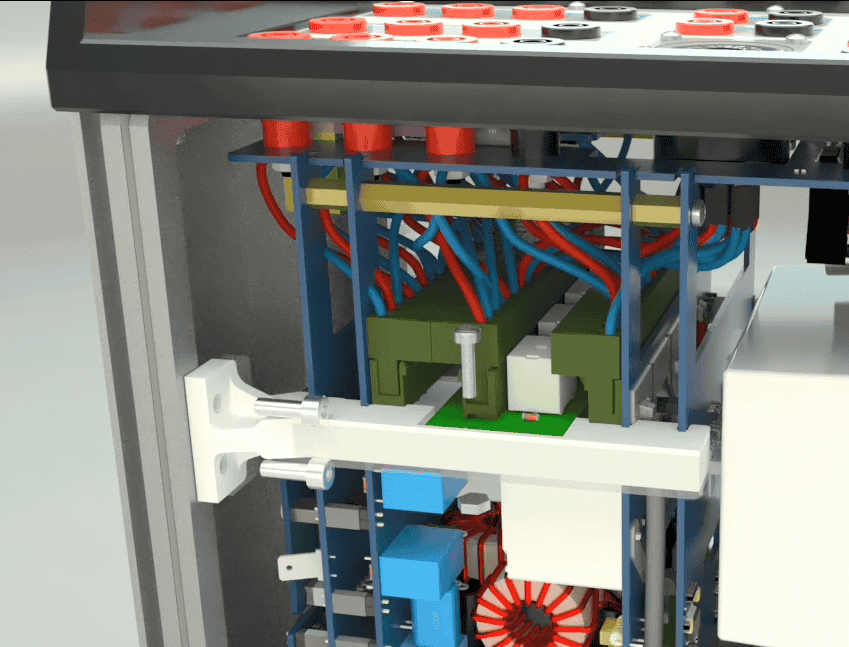

This holder is connected to the body of the case from one side using bolts, nuts and 8×4 flat washers. The slots embedded on this holder, on the other side, are connected to the amplifier and the neutrik board. The neutrik board on this holder is fastened by a special glued 8×3nut to a bolt and a spring washer.

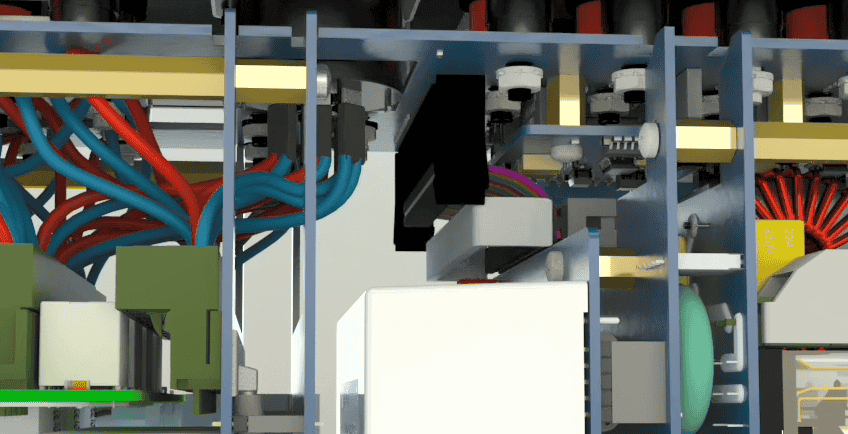

This holder is connected to the wall of the case on one side and connected to the body of the case using bolts, screw washers, and a 8×4 flat. The other side is connected to the module and main switching.

Place the 2*10 holder on a ribbon cable and push it slightly towards the IDC.

The 2 connected wires to the case must be connected to the complete switching module and the incomplete side of the amplifier module.

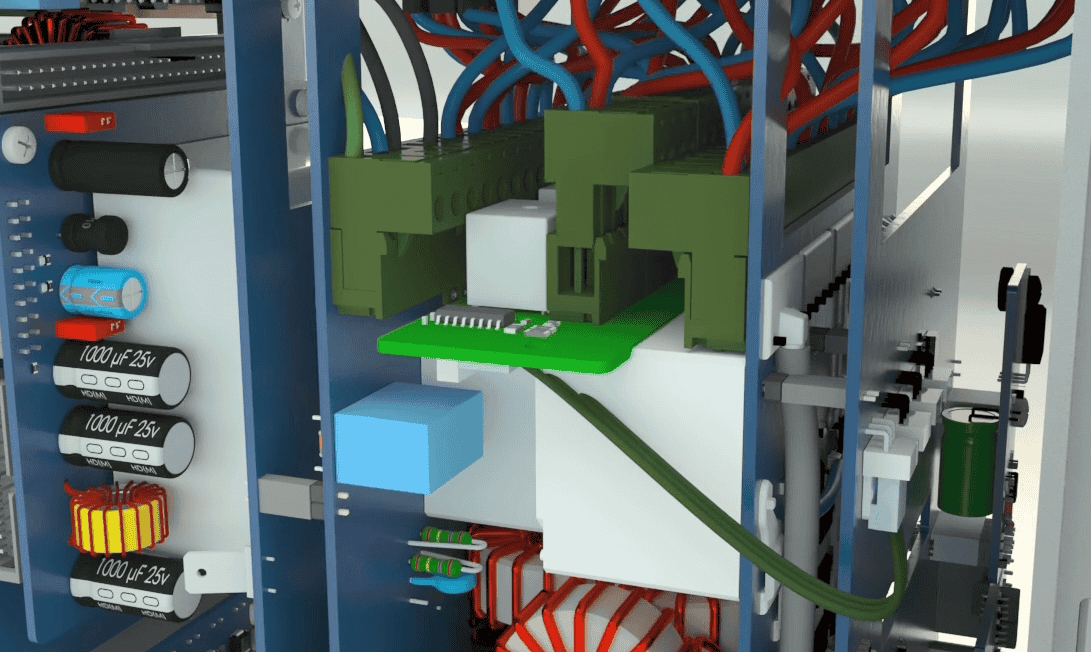

Connect the 6 pin Phoenix voltage cable on the holder to the switching module and put the holder in its place.

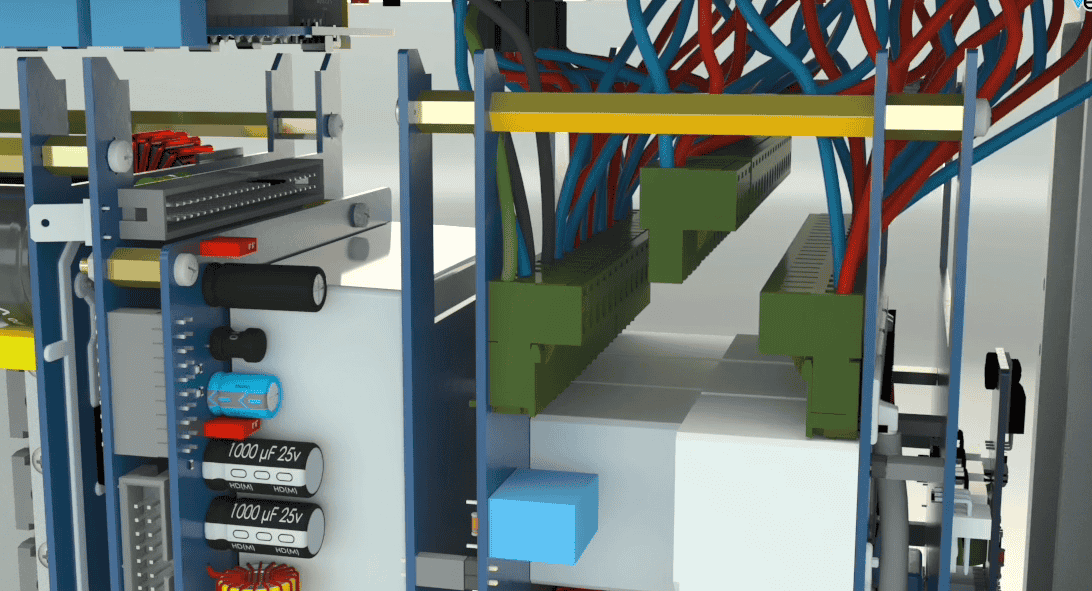

First, connect the 8 pin black Phoenix wire with its holder to the complete switching module.

Then connect the 4 pin black Phoenix wire with its holder to the complete switching module.

In the end, connect the 8 pin red Phoenix wire with its holder to the complete switching module.

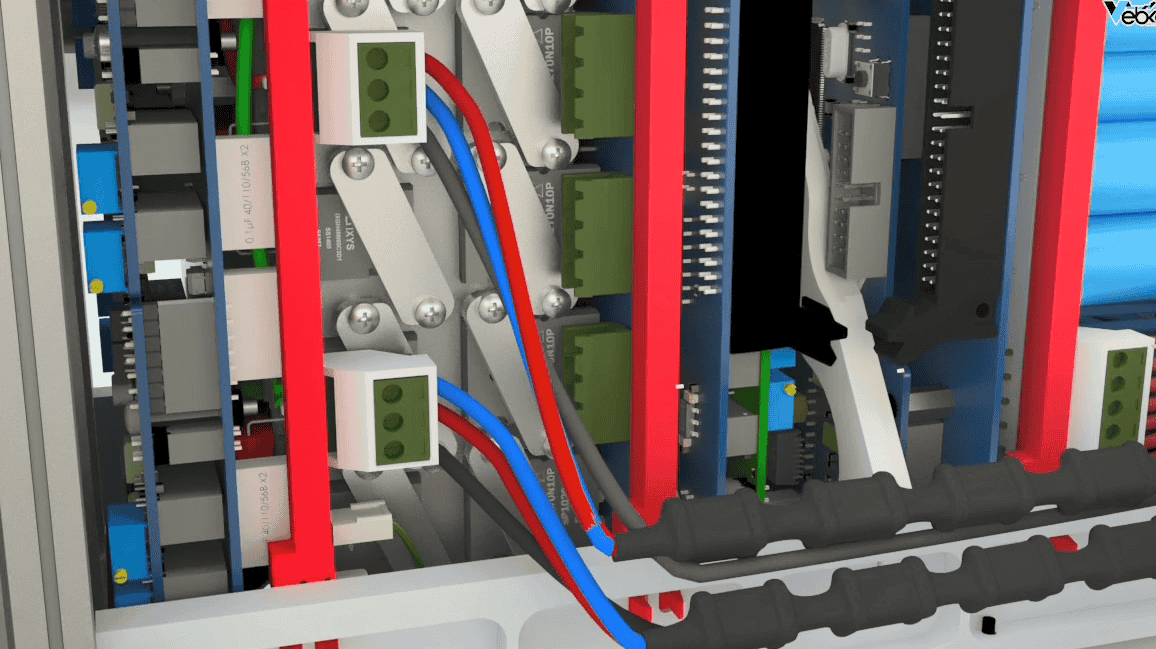

The female Phoenix connector with a shorter wire on the holder should be connected to the lower 3 pin male Phoenix connector. The female Phoenix connector with a longer wire on the holder should be connected to the upper 3 pin male Phoenix connector.

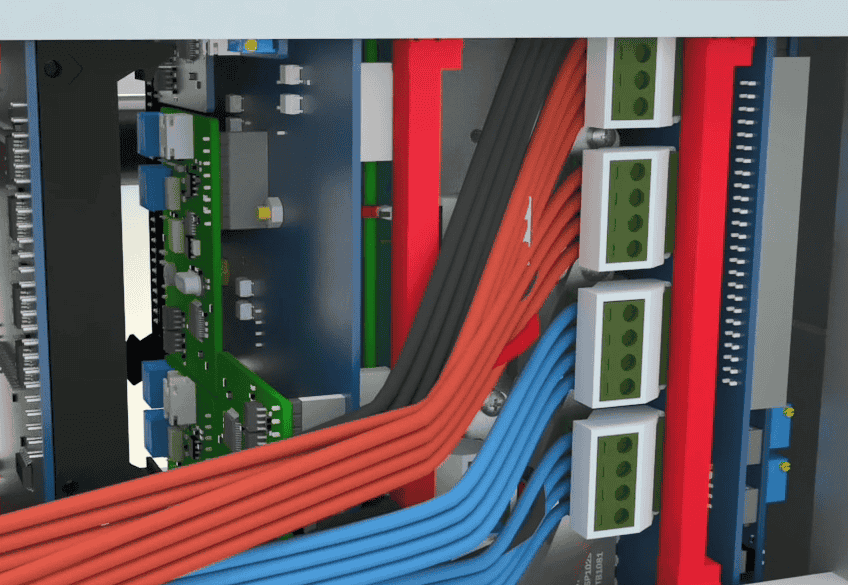

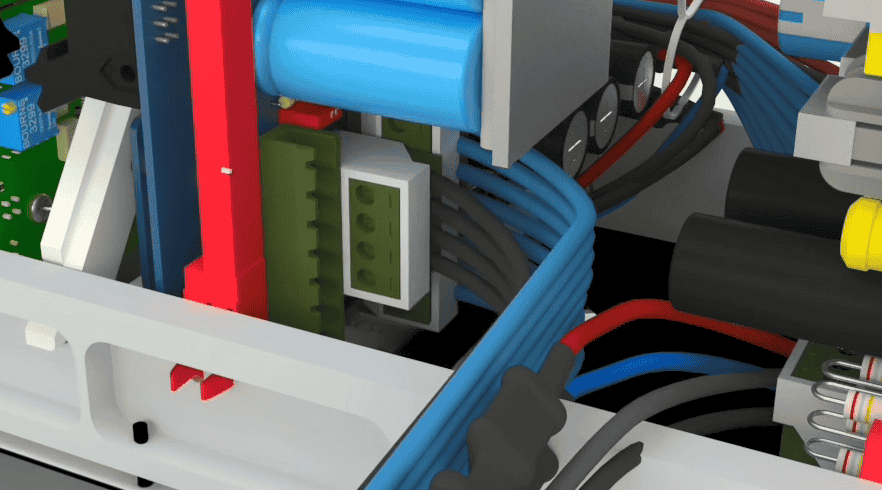

First, connect the 4 pin blue female Phoenix with longer wire on the holder to the second 4 pin male Phoenix connector from the bottom. Connect the 4 pin blue female Phoenix with shorter wire on the holder to the first 4 pin male Phoenix connector from the bottom.

Connect the 4 pin black female Phoenix with shorter wire on the holder to the first 4 pin male Phoenix connector from the top. Connect the 4 pin red female Phoenix connector with longer wire on the holder to the second 4 pin male Phoenix connector from the top.

Connect the 4 pin red female Phoenix connector with shorter wire on the holder to the third 4 pin male Phoenix connector from the top.

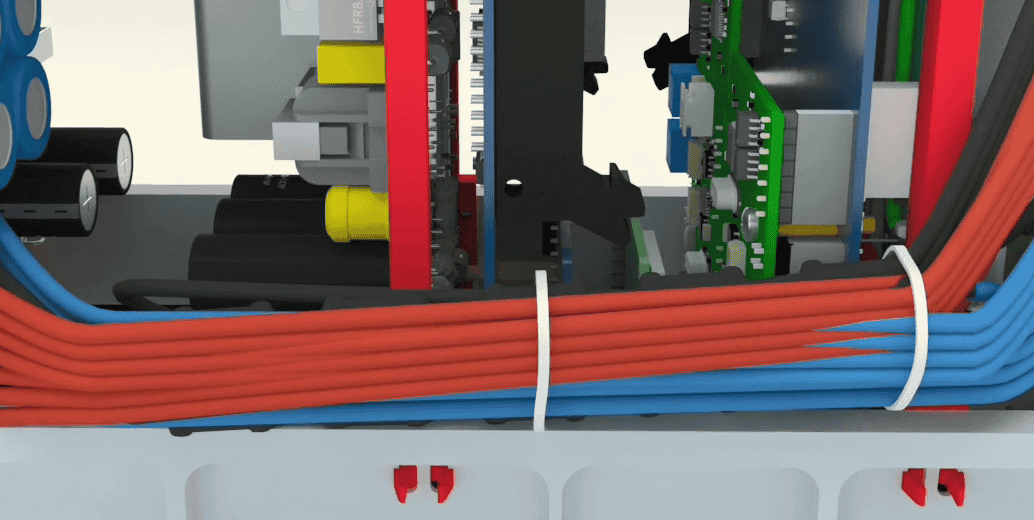

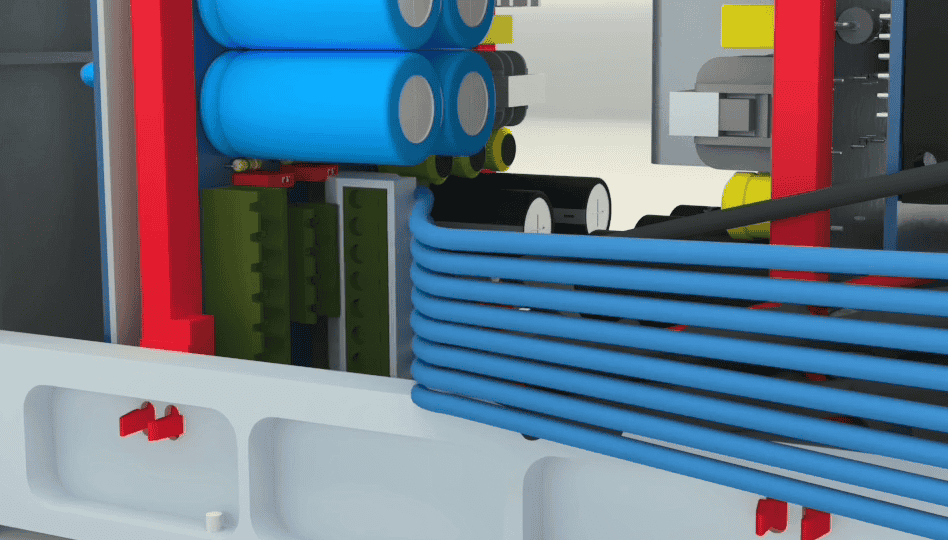

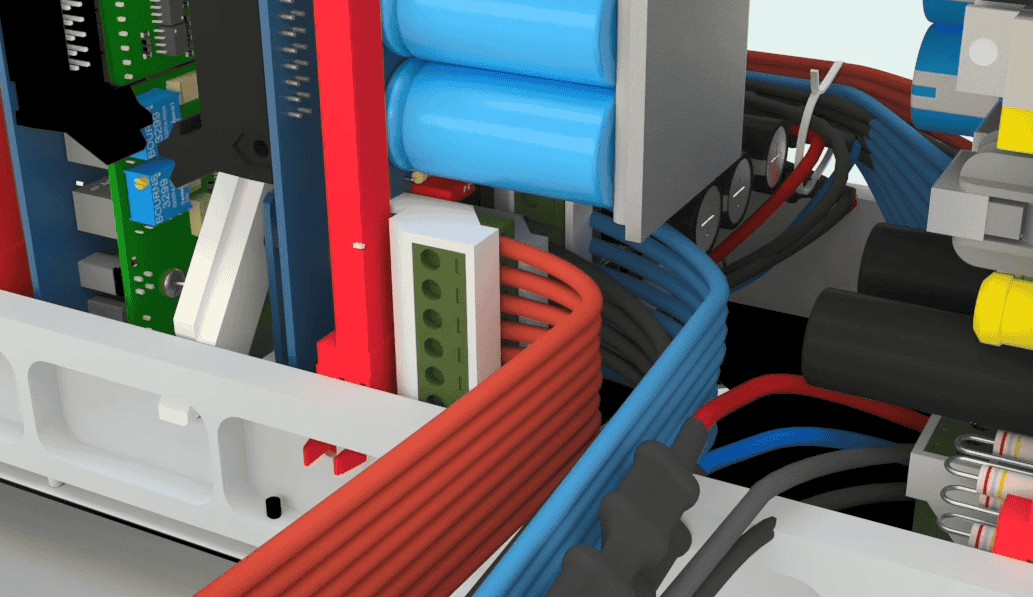

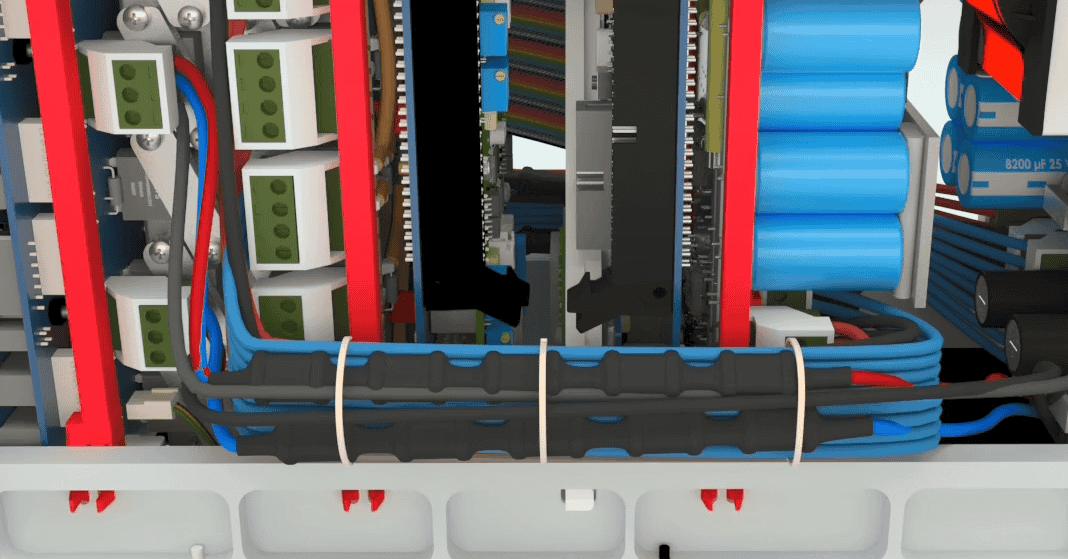

Then assemble all the current and voltage wires with a tie wrap.

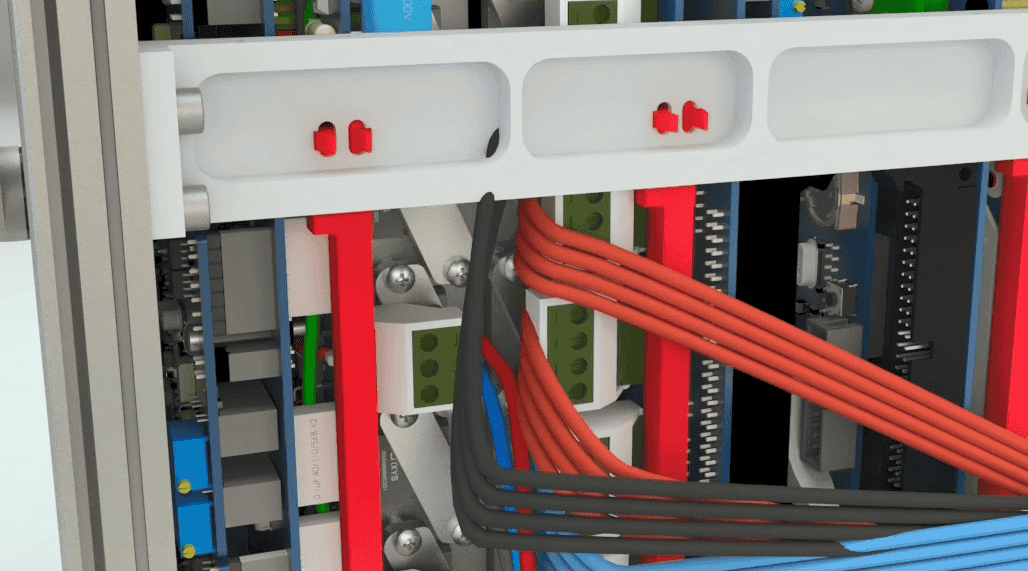

The connector of this cable is approximately in the middle and below the front panel. First, connect the switching side to the switching module, then attach the uncompressed part to the IDC Latch on the panel and close the guards.

On IDC connected to the switching module, install a high legged holder IDC and connect the two sides of the holder base to both sides of the IDC.

When connecting the ribbon cable, pay attention to the IDC cable and the groove on the IDC modules.

Holders must be placed on the rails and the two slots embedded on them should be placed on the module and the original board. Each holder is closed and tightened by 2 screws 16.5×2 soaked in a special screw glue along with a flat washer on the holder and middle rails.

This holder is connected to the wall of the case on one side and connected to the body of the case using bolts, screw and flat washers and an 8×4 flat. The other side is connected to the module and main switching.

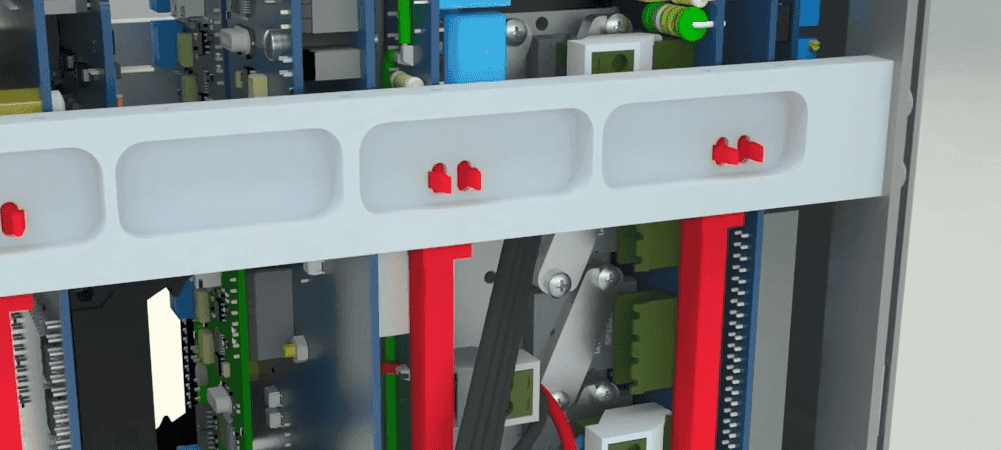

This holder is connected to the body of the case from one side using bolts, nuts and 8×4 flat washers. The slots embedded on this holder, on the other side, are connected to the amplifier and the neutrik board. The neutrik board on this holder is fastened by a special glued 8×3nut to a bolt and a spring washer. Turnover the device on in a way that the back panel is facing upwards.

The door with four legs must be installed underneath the device and the leg-less door is installed on the top. Place the walls in the lower grooves (grooves are on the front panel frame).

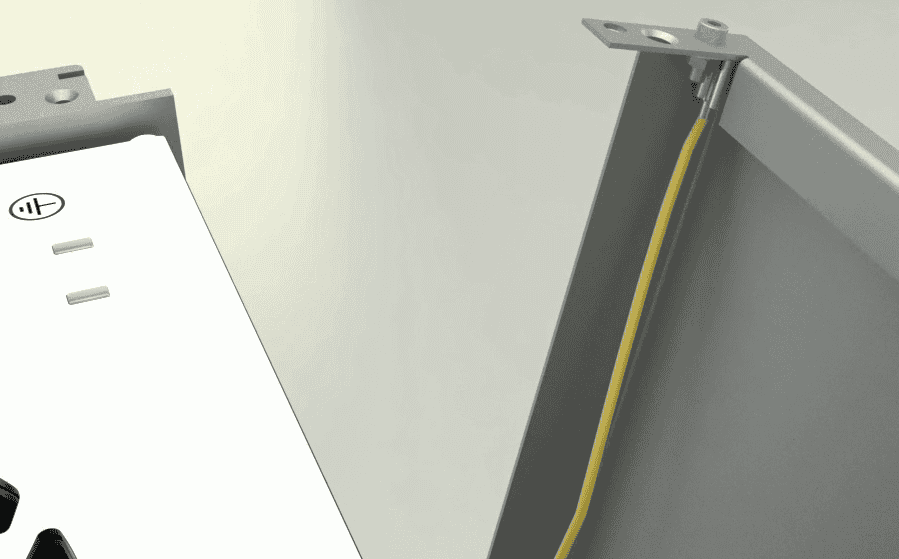

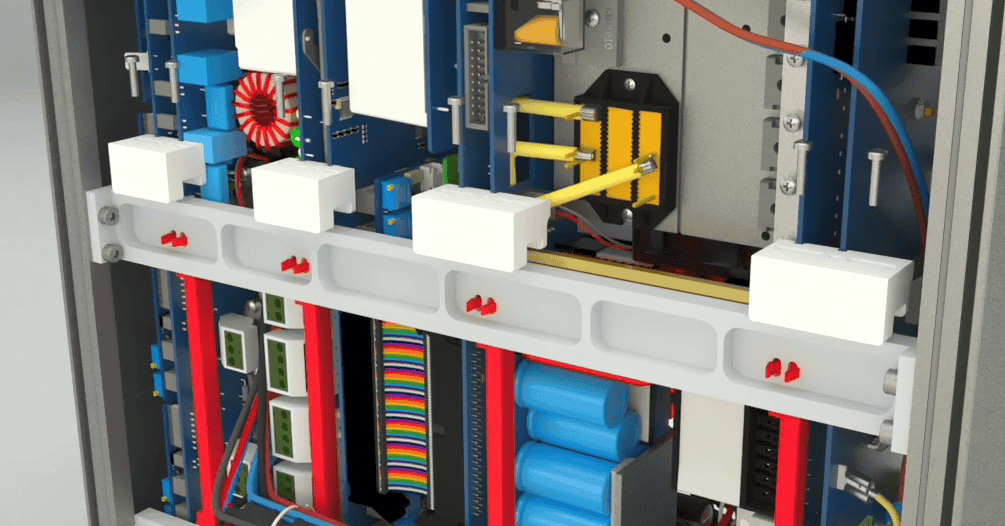

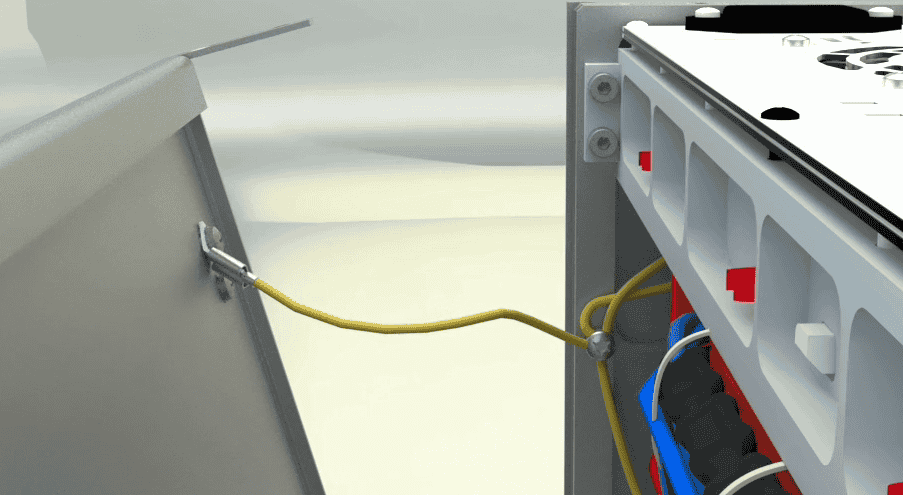

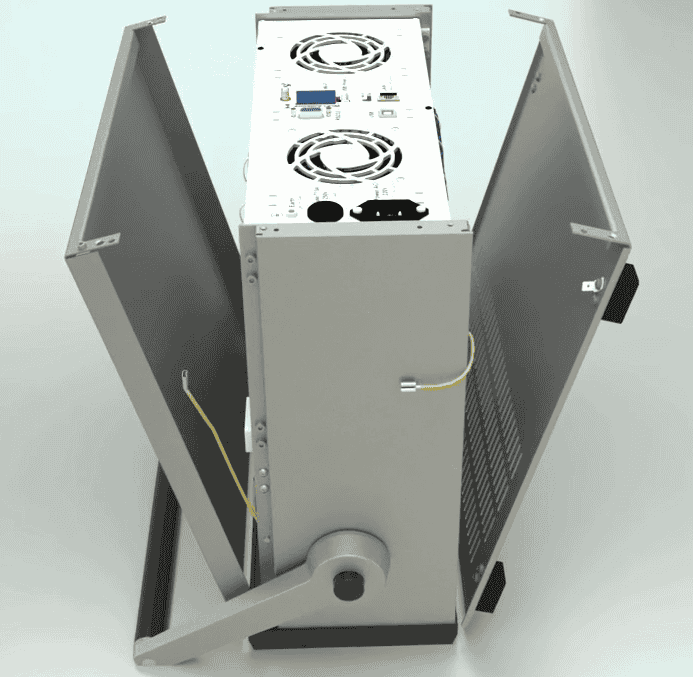

On both sides of the case, two long earth wires have been attached to the body. Connect each side to its door, pull the wire a little with a small force to make sure that they are tight and steady.

Place the doors and install the legs in place; two star screws must be tightened on each side. You need a star screwdriver to tighten the screws.
