    "Connection & Firmware"Tab

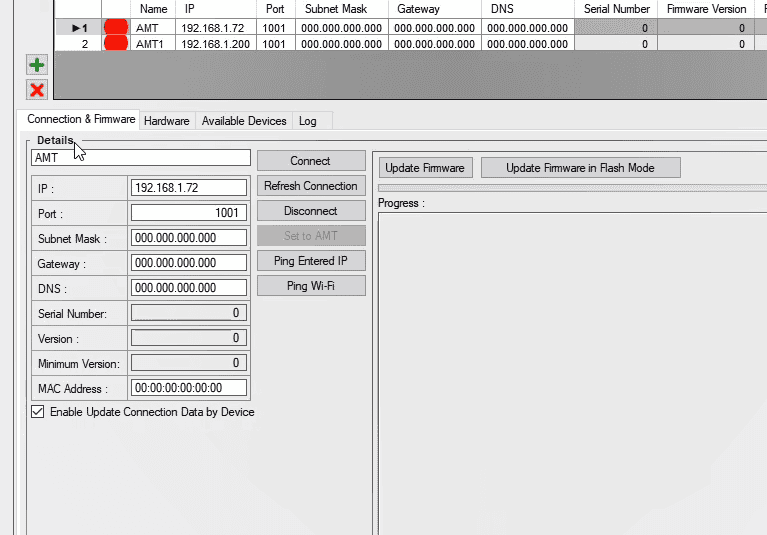

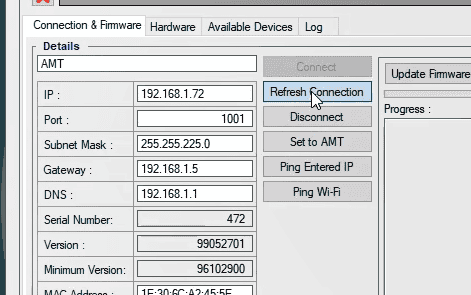

    In the "Connection & Firmware" tab on the "Setting" page, the settings for the device connection and "Firmware Update" can be adjusted. Also, the settings for the connection can be adjusted in the "Details" section. The "IP" field is used to connect to the device. In the past, the last three digits of the device's serial number were used for the fourth part of this field, but as of 15/07/2019, the last two digits of the device's serial number are used for this purpose. The "DNS", "Gateway", 'Subset Mask" and "Port" fields are used for network connections. Once connected to the device, you can change these elements and then by selecting the "Set to ATM" option the changes can be saved.

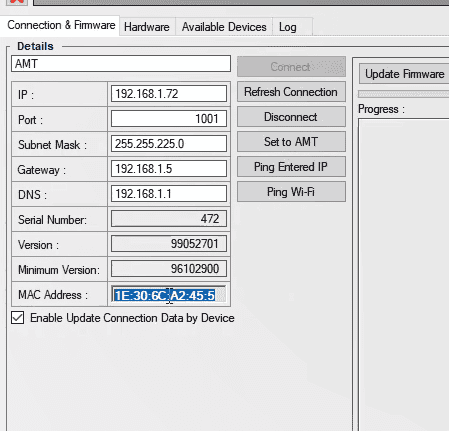

    The "Serial Number" is not changeable by a user and after connecting to the device, the last three digits of the device's serial is written in this part. The "Version" field displays the current version of the device and  the "Minimum Version" field displays the minimum version that allows updating the “Firmware". In the "MAC Address" field, users can use the same software to connect to two devices. If the "MAC Address" of both devices is the same, it is necessary to change one of them. "MAC Address" of a device consists of 6 2-character parts. Enabling the "Enable Update Connection Date by Device" option causes the information of this part to be refreshed continually. If the user wishes to make and apply some changes in this section, they should uncheck the mentioned option and by clicking on the "Set to AMT" option, apply the changes.

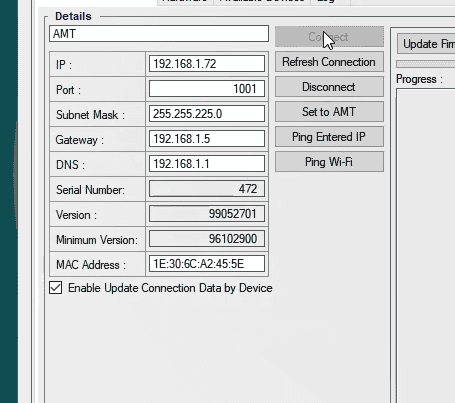

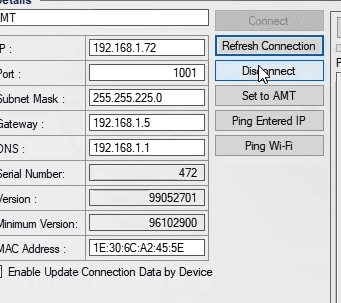

    The “Connect” button is used to connect to the device,

    the “Refresh Connection” button is used to connect and disconnect the device once,

    the “Disconnect” button is used to disconnect the device,

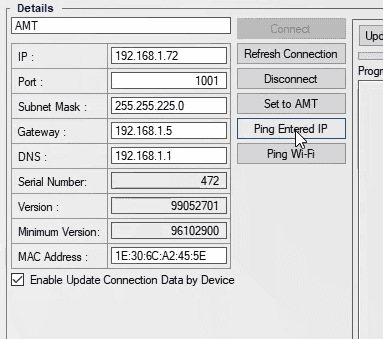

    the “Ping Entered IP” button is used to check the authenticity of the connection to the device via LAN.

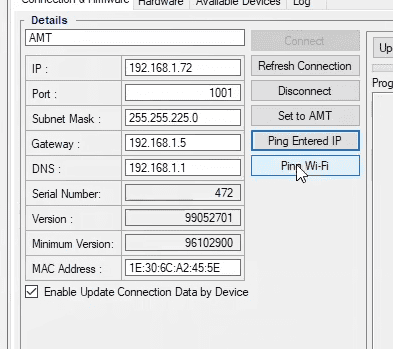

    and, finally, the “Ping Wi-Fi” botton is used to check the authenticity of the connection to the device via "Wi-Fi".

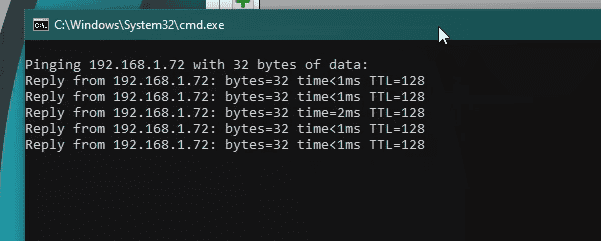

    If the connection is made via LAN, by clicking on the “Ping Entered IP”, the IP which is entered in this section will be pinged.

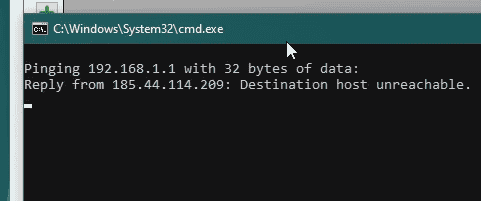

    If the connection is made via Wi-Fi, by clicking on “Ping Wi-Fi”, this IP (192.168.1.1), which is specified for the Wi-Fi of all devices, will be pinged.

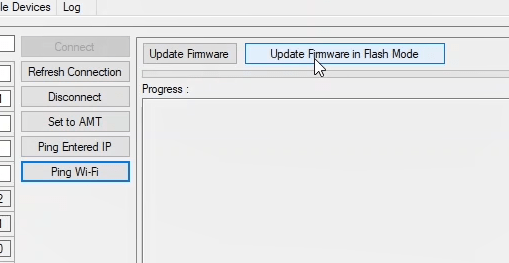

    “Update Firmware” is used to update the firmware of the device which is, usually, done automatically after connecting to the device.  If it didn’t happen automatically, the “Update Firmware in Flash Mode” must be used. How to use this option is explained in the related animation.

     [jg1]Connection_and_Firmware_tab
